MQ600TD80
Call 1-800-882-4959
for a freight quote
or to order
Call 1-800-882-4959
for a freight quote
or to order
6" Diesel Trash Pump
No longer Available
See MQ600H
No longer Available
See MQ600H
6" Trash Pump Skid mount, 1600 GPM, 150 ft. MAX Head
Multiquip's diesel-powered trash pumps offer high performance to tackle the most demanding jobs.
Features include durable cast iron volute and Impeller with removable stainless steel wear plate, and oil-filled mechanical seal and shaft bearings.
Features include durable cast iron volute and Impeller with removable stainless steel wear plate, and oil-filled mechanical seal and shaft bearings.
- Power: Powered by 60-hp Deutz diesel model F4L914.
- Max solid intake: Pumps solids up to 3 inches (75 mm) in diameter.
- Maximum head of an impressive 150 feet (45.7 meters).
- Can pump up to 1,600 gallons (6,055 liters) per minute.
- Full featured shock mounted control panel.
- Skid mount with integral 40-gallon (151 liters) fuel cell.
- Large cleanout cover and wear-resistant ductile cast iron impeller.
- Stainless steel wear plate.
- Abrasion-resistant oil lubricated tungsten/carbide seal.
- Approximate running time of 22 hours.
MQ600TD80 Diesel Trash Pump & Trailer
Multiquip's Model MQ600TD80 Pump
is a high performance self-priming 6" trash pump capable
of moving 96,000 gallons per hour. It's design, power plant and pump-end materials provide exceptional output
and long service life.
The pump comes mounted on a skid, or optional trailer with a 40 gallon fuel capacity
The pump comes mounted on a skid, or optional trailer with a 40 gallon fuel capacity
Multiquip Diesel Trash Pumps
Control Panel:
Full
Feature shock mounted
controller with LED warning
lights for low oil and high
operating temperatures. Box
is water resistant.
Full
Feature shock mounted
controller with LED warning
lights for low oil and high
operating temperatures. Box
is water resistant. - Power: High Performance DEUTZ F4L914 60HP Air Cooled Diesel Engine w/electric start and water resistant full featured Control Box.
- Pump Housing Body: Rugged Grey Iron Number 30.
- Volute: Easy removable, Cast Iron dual passage design for quick priming, minimal clogging and long life.
- Impeller: Cast ductile iron, open/multi-vane design. Abrasion resistant and capable of passing solids up to 3" in diameter.
- Mechanical Seal: Silicon/Tungsten Carbide w/oil resistant seat. Seal is oil-lubricated with sight gauge and is supported with stainless steel components.
- Suction/Discharge Port: Cast Iron 6" diameter multi-position 90 ° ports with female NPT threads. Designed for easy cover removal for simple clean-out
Model |
Pump Size |
Engine Hp |
GPM |
Max. Head |
PSI |
Dimensions L x W x H |
Weight |
QP2TZ |
2" |
1B20 4.6Hp |
198 |
96 Feet |
41.1 |
26.5" x 18.3" x 33.2" |
131 Lbs. |
QP3TZ |
3" |
1B30 |
383 |
90 Feet |
38.9 |
27.8" x 20" x 25" |
142 Lbs. |
QP4TZ |
4" |
1B40 |
526 |
85 Feet |
36.8 |
28.2" x 25.1" x 28.2" |
285 bs. |
MQ62TDD |
6" |
D2011L04i |
1083 |
100 Feet |
43.3 |
56" x 36" x 56" |
1560 Lbs. |
MQ600TD80 |
6" |
D914 |
1600 |
160 Feet |
64.9 |
80" x 39" x 49" |
2200 Lbs. |

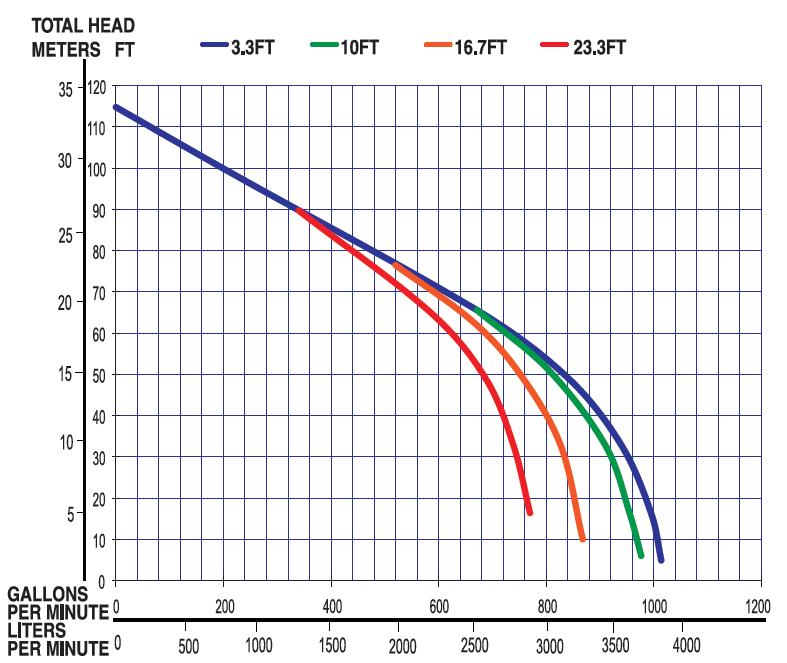

Pump Curve for MQ600TD80 Diesel Trash Pumps
