QP4TZ

$6,059.95
4" Diesel Trash Pumps
4" Suction, Trash Pump, 526 GPM, 85 ft. MAX Head
Multiquip's 4-inch (100 mm) trash pumps move water quickly, quietly and efficiently in a variety of challenging applications. The QP4TZ can be used as a portable unit or mounted on one of several different trailer combinations. Perfect for municipalities and contractors.

  • Power: Powerful 9.9HP Subaru/Hatz 1B40 diesel engine.
  • Max solid intake: Pumps water with solid content as large as 2-inch (51 mm) in diameter.
  • Maximum Head – 90 ft (27 meters).
  • Can pump up to 526 gallons (2,000 liters) per minute.
  • Dual 4-inch discharge ports to adapt to different applications.
  • Silicon/silicon mechanical seal for durability.
  • Large cleanout cover removes in seconds without tools.
  • Tubular Steel frame for transportation and pump protection.
  • Cast Iron impeller and volute for abrasion resistance/long life.
  • Volute has a removable stainless steel wear plate.
  • Aluminum body with cast-iron fittings.
  • Optional Wheel Kit available (UWK4).
Multiquip Diesel Trash Pumps
If You Prefer Diesel Power for Your Trash Pumps - Multiquip's diesel powered pump line provide EASY Maintenance / EASY Cover Clean Out design. The models include a durable two-vane impeller that can be easily removed from the engine shaft, exposing the seal for inspection / replacement.
  • Power: Powerful Subaru/HATZ 1B40 9.9HP diesel engine.
  • Die Cast Aluminum Body: Lightweight, resilient pump body for strength and easy handling.
  • Double Volute Design: designed with cast iron materials for efficiency, abrasion resistance, and minimal clogging.
  • Mechanical Seal: Silicon/Tungsten Carbon materials for long life and abrasion resistance.
  • Seal Sleeve & Pump Shaft: Made from Stainless Steel for corrosion resistance and operating long life.
  • Tubular Steel Frame: Rugged 1" diameter steel frame surrounds the pump end and engine for protection.
Model
Pump Size
Engine
Hp
GPM
Max.
Head
PSI
Dimensions
L x W x H
Weight
QP2TZ
2"
1B20
4.6Hp
198
96 Feet
41.1
26.5" x 18.3" x 33.2"
131 Lbs.
QP3TZ
3"
1B30
383
90 Feet
38.9
27.8" x 20" x 25"
142 Lbs.
QP4TZ
4"
1B40
526
85 Feet
36.8
28.2" x 25.1" x 28.2"
285 bs.
MQ62TDD
6"
D2011L04i
1083
100 Feet
43.3
56" x 36" x 56"
1560 Lbs.
MQ600TD80
6"
D914
1600
160 Feet
64.9
80" x 39" x 49"
2200 Lbs.

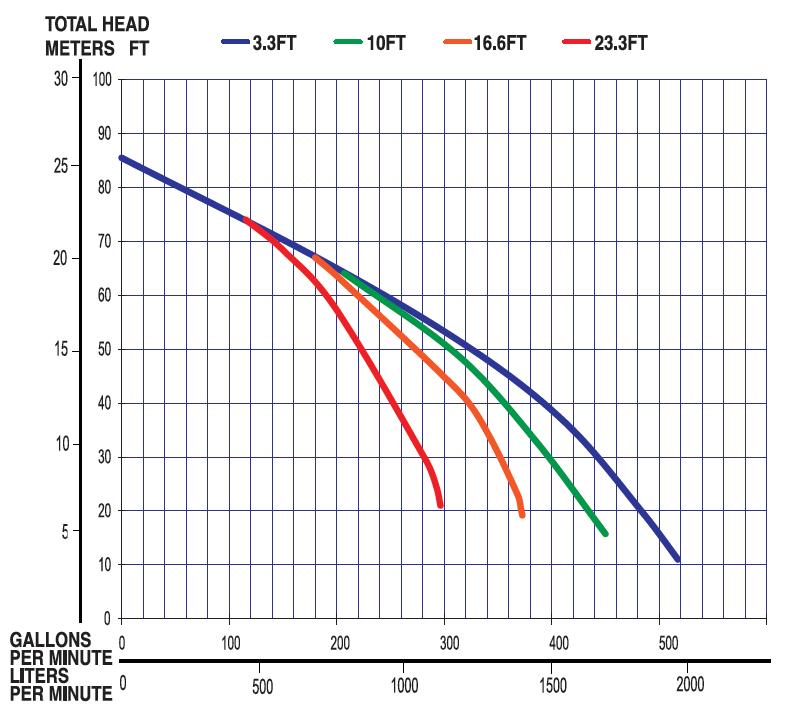

Pump Curve for QP4TZ Diesel Trash Pumps
