This lightweight, compact submersible centrifugal pump is ideal for moving water in multiple confined and open area applications. The unique casing design of this pump permits it to draw water to a level of 1/16” without having to place the pump in any kind of sump. This versatile, low maintenance pump is perfect for a wide range of operations supporting Contractors, Service Utilities, Municipalities, and Homeowners. Further, the ST2038P incorporates a rugged cast aluminum housing, internal thermal overload protection, dual shaft seals, sealed ball bearings impeller and molded 19’ Power Cable with strain relief.
  • 1.0HP, 115V/8.0A, 1Ø, UL & CUL Listed Electric Motor.
  • Built-in Overload Protection.
  • 2” (NPT) Female Discharge Port.
  • Reliable double mechanical oil-filled seals.
  • Cast iron/steel motor casing serves as heat conductor.
  • Pumps Liquid Up To 120° F.
  • 50’ of molded power cord w/strain relief
  • Dewaters Flat Surfaces Up To 1/16” Levels.

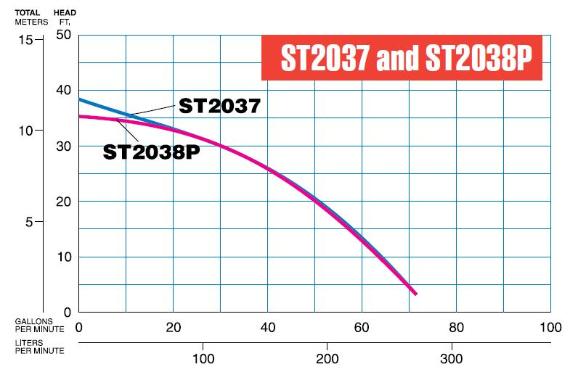

ST2038P Series - Pump Curve
As elevation (head) decreases, volume capacity increases.
When using any pump, avoid operating on the edges of the pump curve.
The center of every pump curve represents the pumps maximum efficiency.
Model
Pump Size
Motor
Hp
GPM
Max.
Head
Dimensions
Diameter x Height
Weight
LSC1.4S
0.75"
2/3
45
40 Feet
8.25" x 11.375"
23 Lbs.
LSR2.4S
2"
2/3
60
40 Feet
8.25" x 11.375"
28 Lbs.
ST2038P
2"
1.0
60
38 Feet
7.7" x 15.4"
31 Lbs.
