Heavily debris-laden water calls for rugged pumps. Multiquip submersible trash pumps can easily handle solids up to 1 inch in diameter. All pumps employ single phase electrical power, compact design, high performance impeller design, and trusted performance operations.

This lightweight, compact submersible trash pump is ideal for moving water with debris (Maximum size - 1” solids). The Industrial grade cast iron housing and abrasion resistant Cast Iron Impeller with Neoprene Rubber overlay tackles tough dewatering applications and heavy usage operations. Further, the ST2040T incorporates a carrying handle, internal thermal overload protection, dual shaft seals, sealed ball bearings impeller, easy impeller clean-out, and molded 25’ Power Cable with strain relief.
  • 1.0HP, 115V/6.5A, 1Ø, UL & CUL Listed Electric Motor.
  • Built-in Overload Protection.
  • 2” (NPT) Female Discharge.
  • Total Head: 40 ft.
  • MAX Capacity: 79 gmp.
  • Pumps Liquid Up To 120° F.
  • Heavy-duty Cast Iron Housing construction.
  • Dewaters Flat Surfaces Up To 2” Levels.

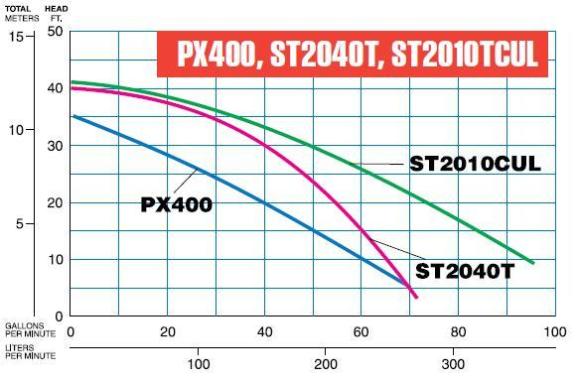

ST2010TCUL Series - Pump Curve
As elevation (head) decreases, volume capacity increases.
When using any pump, avoid operating on the edges of the pump curve.
The center of every pump curve represents the pumps maximum efficiency.
Model
Pump Size
Motor
Hp
GPM
Max.
Head
Dimensions
Diameter x Height
Weight
HS2.4S
2"
1/2
50
35 Feet
10.0625" x 12.9375"
25 Lbs.
HSD.255S
2"
3/4
53
39 Feet
9.75" x 15.375"
33 Lbs.
HSZ2.4S
2"
1/2
50
35 Feet
13.5" x 17.5"
42 Lbs.
ST2010TCUL
2"
1/2
95
45 Feet
10.3" x 24.5"
77 Lbs.
ST2040T
2"
1/2
79
40 Feet
10.3" x 16.8"
34 Lbs.
HS3.75
3"
1
74
59 Feet
12.4375" x 15.25"
47 Lbs.
HSZ3.75S
3"
1
74
59 Feet
13.5" x 17.5"
42 Lbs.
