Multiquip ST3050D
230 Volt Three Phase
Submersible Water Pump
Free Ground Freight* (*Continental U.S. - Signature Required)
Model #
Discharge
Motor
Price
ST3050D
3"
230Volt
Three Phase
$2,219.95
----- Options -----
HD350
3 Inch Discharge Hose - 50' Long
    $120.00
SW1W0PA
Float Switch
(Priced here as a set of two)
must be used with CB200
    $160.00
CB200
Control Box
    $1,045.00
To order with options call toll free: 1-800-882-4959
Please ask for "Internet Sales"

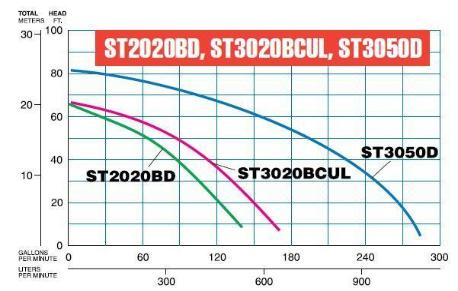

ST3050D Pump Curve
Use this pump
curve to
determine the
flow rate of the
ST3050D
pumps for any
given elevation
(head).  For
example if you
need to pump
to a height of
20 feet, this
pump will move
approximately
240 gallons per
minute.
Model
Solid
Handling
Capacity
Hp
Max
Head
(ft)
Max
GPM
Cable
Length
(ft)
Dimensions
Diameter x
Height (inch)
Price
3 Inch Discharge Pump
  • ST3050D
N/A
5
86
270
50
10.2 X 26.8
$2,219.95
Multiquip Electric Submersible Pumps
This 230-volt three-phase model is the perfect tool for a wide range of
dewatering applications, including construction, utility, municipality and
homeowner jobs
ST3050D
Unit Specifications
Impeller
Type
Neoprene rubber
over cast-iron
Impeller
Disc Size
3"
75mm
Total
Head
86 ft
26 m
Water
Capacity
270 gpm
1022 lpm
ST3050D
Electrical
Specifications
Power
5 Hp
3.75 kW
Phase
Three
Voltage
230 V
Starting
Amperage
0 A
Running
Amperage
0 A
Cable
Length
50 ft
15.2m
ST3050D
Dimensions &
Weights
Pump
Diameter
10.2
inches
259 mm
Overall
Height
26.8
inches
681 mm
Operating
Weight
120 lbs.
54 kg
  1. Hp three-phase motor, 230/460 dual voltage
  2. Top pumping capacity of 270 gallons (1,022 liters) per minute
  3. Total head is 86 feet (26.2 meters)
  4. Mechanical seal within an oil-filled chamber for positive
    lubrication
  5. Recommend use with the optional CB200 Control Box
NOTE:  All Multiquip 3-Phase submersible pumps require a control box to provide it with
all of the operation safety shut-downs and to use with float switches (if required). If
these pumps are ordered to replace a unit in an existing application where a control box
is already installed then the existing control box may be sufficient.  If the pump is part of
a new application where a control box is not already present then a control box needs to
be ordered with the 3-phase submersible pump. A control box is needed specifically to
provide the 3-phase submersible pump with the voltage overload and thermal overload
shutdowns, as well as a connection point for the float switches.
FLOAT SWITCHES:

  1. UL and CSA listed
  2. 20 Foot 14 guage
    electrical cord,
    bare wire on end
    (no plug).
  3. Use with control
    box applications
    (direct connect to
    control box)
  4. TWO EACH ARE
    REQUIRED
    (Priced above as a set)
Quantities limited to available stock.  Prices subject to change without website update.
