Multiquip ST4125D
230 Volt Three Phase
Submersible Water Pump
Free Ground Freight* (*Continental U.S. - Signature Required)
Model #
Discharge
Motor
Price
ST4125D
4"
230Volt
Three Phase
----- Options -----
HD450
4 Inch Discharge Hose - 50' Long
    $220.00
SW1W0PA
Float Switch
(Priced here as a set of two)
must be used with CB200
    $160.00
CB200
Control Box
    $1,045.00
To order with options call toll free: 1-800-882-4959
Please ask for "Internet Sales"

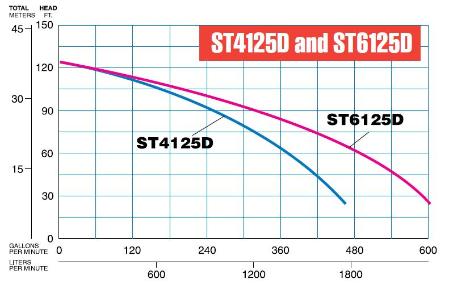

ST4125D Pump Curve Use this pump
curve to
determine the
flow rate of the
ST4125D
pumps for any
given elevation
(head).  For
example if you
need to pump
to a height of
30 feet, this
pump will move
approximately
420 gallons per
minute.
Model
Solid
Handling
Capacity
Hp
Max
Head
(ft)
Max
GPM
Cable
Length
(ft)
Dimensions
Diameter x
Height (inch)
Price
4 Inch Discharge Pump
  • ST4125D
N/A
10
125
464
50
14.2 X 32.7
Multiquip Electric Submersible Pumps
This 230-volt three-phase 4 inch pump is a heavy duty submersible ideal for
removing water from confined areas and it provides numerous advantages
over engine driven trash pumps where high water lift is necessary. Designed
with a 4-inch NPT Threaded discharge port.
ST4125D
Unit Specifications
Impeller
Type
Cast-Ductile-Iron
Impeller
Disc Size
4"
100mm
Total
Head
125 ft
38 m
Water
Capacity
464 gpm
1756 lpm
ST4125D
Electrical
Specifications
Power
10 Hp
7.5 kW
Phase
Three
Voltage
230 V
Starting
Amperage
0 A
Running
Amperage
0 A
Cable
Length
50 ft
15.2m
ST4125D
Dimensions &
Weights
Pump
Diameter
14.2
inches
361 mm
Overall
Height
32.7
inches
831 mm
Operating
Weight
330 lbs.
150 kg
  1. Top flow of 464 gallons per minute
  2. Driven by a 10-Hp 3-phase motor
  3. Optional float switches and control boxes for max performance
  4. Cast Iron ductile impeller
  5. Weighs 330 pounds.
NOTE:  All Multiquip 3-Phase submersible pumps require a control box to provide it with
all of the operation safety shut-downs and to use with float switches (if required). If
these pumps are ordered to replace a unit in an existing application where a control box
is already installed then the existing control box may be sufficient.  If the pump is part of
a new application where a control box is not already present then a control box needs to
be ordered with the 3-phase submersible pump. A control box is needed specifically to
provide the 3-phase submersible pump with the voltage overload and thermal overload
shutdowns, as well as a connection point for the float switches.

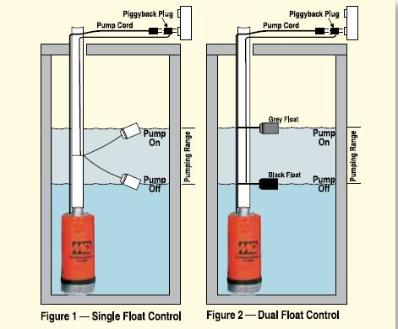

FLOAT SWITCHES:

  1. UL and CSA listed
  2. 20 Foot 14 guage
    electrical cord,
    bare wire on end
    (no plug).
  3. Use with control
    box applications
    (direct connect to
    control box)
  4. TWO EACH ARE
    REQUIRED
    (Priced above as a set)
Quantities limited to available stock.  Prices subject to change without website update.
