Multiquip ST6125D
230 Volt Three Phase
Submersible Water Pump
Free Ground Freight* (*Continental U.S. - Signature Required)
Model #
Discharge
Motor
Price
ST6125D
6"
230Volt
Three Phase
$4,099.95
----- Options -----
HD650
6 Inch Discharge Hose - 50' Long
    $220.00
SW1W0PA
Float Switch
(Priced here as a set of two)
must be used with CB200
    $160.00
CB200
Control Box
    $1,045.00
To order with options call toll free: 1-800-882-4959
Please ask for "Internet Sales"

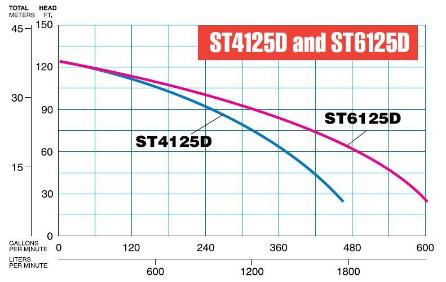

Use this pump
curve to
determine the
flow rate of the
ST6125D
pumps for any
given elevation
(head).  For
example if you
need to pump
to a height of
60 feet, this
pump will move
approximately
480 gallons per
minute.
ST6125D Pump
Model
Solid
Handling
Capacity
Hp
Max
Head
(ft)
Max
GPM
Cable
Length
(ft)
Dimensions
Diameter x
Height (inch)
Price
6 Inch Discharge Pump
  • ST6124D
N/A
10
125
464
50
14.2 X 32.7
$4,099.95
Multiquip Electric Submersible Pumps
230-volt three-phase 6 inch pump in addition to benefits designed for every
application, this heavy-duty submersible pump is also extremely quiet and can
run for hours unattended. Designed with a 6-inch bolt on flange fitting for the
discharge port.
ST6125D
Unit Specifications
Impeller
Type
Cast-Ductile-Iron
Impeller
Disc Size
6"
150mm
Total
Head
125 ft
38 m
Water
Capacity
610 gpm
2309 lpm
ST6125D
Electrical
Specifications
Power
15 Hp
11 kW
Phase
Three
Voltage
230 V
Starting
Amperage
0 A
Running
Amperage
0 A
Cable
Length
50 ft
15.2m
ST6125D
Dimensions &
Weights
Pump
Diameter
14.5
inches
368 mm
Overall
Height
38.8
inches
986 mm
Operating
Weight
390 lbs.
177 kg
  1. Multiquip's hightest capacity sub pump
  2. Moves 610 gallons a minute
  3. Maximum head of 125 feet
  4. 15 Hp 3-phase motor
  5. Stainless steel hardware resists corrosion
  6. Discharge size of 6 inches.
NOTE:  All Multiquip 3-Phase submersible pumps require a control box to provide it with
all of the operation safety shut-downs and to use with float switches (if required). If
these pumps are ordered to replace a unit in an existing application where a control box
is already installed then the existing control box may be sufficient.  If the pump is part of
a new application where a control box is not already present then a control box needs to
be ordered with the 3-phase submersible pump. A control box is needed specifically to
provide the 3-phase submersible pump with the voltage overload and thermal overload
shutdowns, as well as a connection point for the float switches.
FLOAT SWITCHES:

  1. UL and CSA listed
  2. 20 Foot 14 guage
    electrical cord,
    bare wire on end
    (no plug).
  3. Use with control
    box applications
    (direct connect to
    control box)
  4. TWO EACH ARE
    REQUIRED
    (Priced above as a set)
Quantities limited to available stock.  Prices subject to change without website update.
