Tsurumi VANCS 50PNA2.4S
2 Inch Submersible Automatic Water Feature Pump
with 32' Power Cord
|
|
|
 |
|
|
|
|
|
|
Free Ground Freight* (*Continental U.S. - Signature Required)
|
|
|
|
|
|
|
|
|
|
110Volt
Single Phase
(standard)
|
|
|
|
|
|
|
|

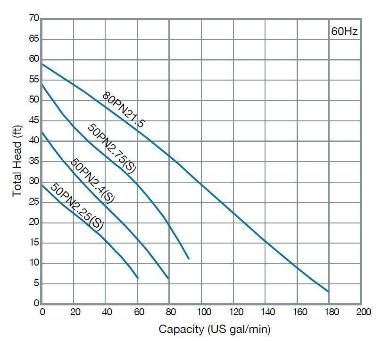

Use this pump curve to determine the flow rate of the 50PNA2.4S (Series) pumps for
any given elevation (head). For example if you need to pump to a height of 10 feet, this
pump will move approximately 75 gallons per minute.
|
|
|
|
 |
|
 |
|
|
|
|
Applications:
Residential, commercial,
industrial, effluent,
wastewater and site
drainage.
Chemical spill containment.
Raw water supply from rivers
or lakes.
Anywhere your sump pump
is subject to rust / corrosion.
|
|
|
|
|
Low internal velocities
extends life of impeller
and volute.
|
|
Operates at lower
temperatures, Extending
insulation and bearing life.
|
|
|
|
|
|
|
|
|
|
|
Dimensions
Diameter x
Height (inch)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
50PN2A2.4S One piece molded cable entrance incorporates:
|
|
|
1. Cable Boot: Prevents
kinking at cable entrance
by extending handling
radius
2. Anti-Wicking block:
Prevents water incursions
due to capillary wicking,
should the power cable be
damaged or the end
submerged
3. Limited Tightening
Plate: Prevents over
tightening of boot
compression screws -
provides strain relief.
|
|
|
|
 |
|
|
4. Permanently lubricated,
double shielded, single
row, deep grove, high
temperature C3 ball
bearing rated, B-10 =
60,00 Hours.
5. Copper Winding with
Class E Insulation
|
|
|
6. Pump end designed
to be hydraulically
correct: for a wide variety
of applications
|
|
|
7. Built in Ball Check
and Air Relief Valve:
Prevents air locking
8. Semi Vortex Impeller:
Handles long stringy
materials and large
diameter solids
9. Application
Appropriate Resin and
Fiberglass (FRP):
Resistant to high or low
temperatures, impact,
chemicals, and corrosion
|
|
|
|
|
|
11. Stainless Steel
Motor Frame, Shaft &
Fasteners: Provides
protection against
corrosion
12. Molded in Stainless
Steel Anchors for each
fastener: Increases
structural integrity
|
|
14. Oil Lifter: Lubricates
the seal faces down to 1/3
of normal oil level and
extends seal life by ten
times - uses no additional
power
|
|
|
|
|
|
|
Low internal
velocities extends life
of impeller and volute.
|
|
|
|
13. Double Inside
Mechanical Seal with
Silicon Carbide Faces:
Assures the longest
operational life of any seal
available
|
|
|
|
10. Circle Thermal
Motor Protector:
Protects against over
amperage, overheating,
and run-dry
|
|
|
|
|
|
|
|
|
|
Operates at lower
temperatures, Extending
insulation and bearing life.
|
|
|
|
|
|
|
