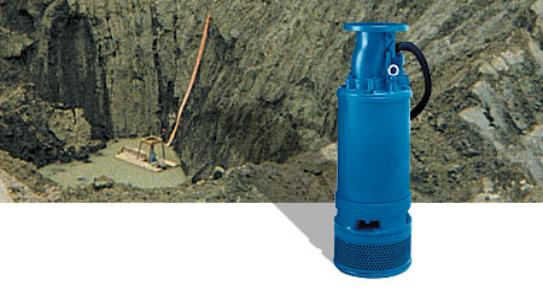

LHW Series
Tsurumi's LHW series achieves extremely high head capabilities. Our dual staged enclosed impellers are just one of many features found engineered into these durable pumps which can help you solve all your long distance water transfer needs..


Special Order Item

Call 1-800-882-4959 for pricing & availabiltiy

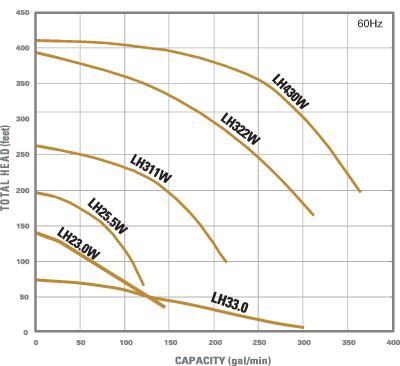

LH Series - Pump Curves
As elevation (head) decreases, volume capacity increases.
When using any pump, avoid operating on the edges of the pump curve.
The center of every pump curve represents the pumps maximum efficiency.
LHW Series Features
  • Discharge sizes from 2-4 inches and horsepower range from 4-40 hp
  • Replaceable and adjustable high chrome wear rings provide increased wear resistance.
  • Built in thermal and amperage protectors prevent motor failure in run-dry or surge conditions.
  • High pressure dual silicon carbide mechanical seals operate in a separate oil chamber and are capable of withstanding operating depths of 328 feet.
  • Seal pressure relief ports provide a flow path above the pump casing and allow water release from the pump and away from the shaft. This protects the mechanical seals from excessive pumping pressure or water hammer in high head pumping applications.
  • Anti-wicking cable entrance and Tsurumi's exclusive oil lifter for added protection.
Model
Pump Discharge Size
Motor
Hp
Pole
Available Voltage
Diameter
(inches)
Height
(inches)
Weight (lbs)
LH23.0W
2
4
208/230/460/575
7 5/16
24 13/15
101
LH311W
3
15
208/230/460/575
10 5/8
40 5/16
286
LH322W
3
30
208/230/460/575
13
48 5/8
670
LH33.0
3
4
208/230/460/575
7 5/16
25 3/8
93
LH430W
4
40
208/230/460/575
14 3/8
54 1/8
714
