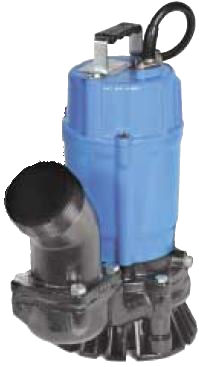

Tsurumi HS3.75S
3 Inch Submersible Trash Pump with 32' Power Cord
Pump sands, solids and debris with
minimal wear and clogging
Tsurumi Pumps Include:  Free Ground Freight*
Single phase agitator pump suspends solids
when pumping sand and debris.
1 Horsepower with a 3 Inch Discharge
Can handle solids up to 1/4" diameter
Model #
Discharge
Motor
Price
HS3.75S
3"
110Volt
Single Phase
(standard)
$463.00
----- Options -----
113-
D3X50PRCAM
3 Inch Quick Disconnect
Discharge Hose - 50' Long
(Includes thread adapter)
    $250.00
To order with options call toll free: 1-800-882-4959
Please ask for "Internet Sales"

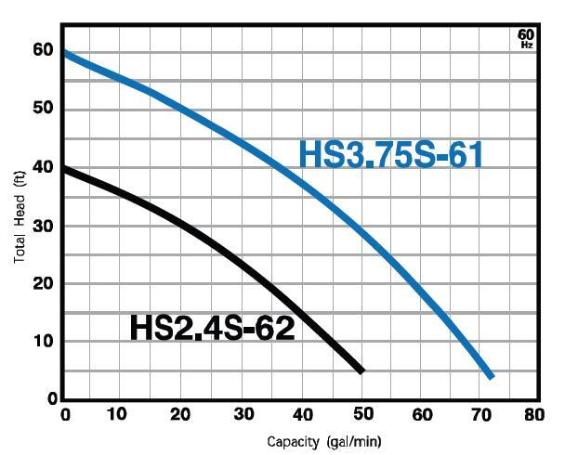

Use this pump curve to determine the flow rate of the HS3.75S (Series) pumps for any
given elevation (head).  For example if you need to pump to a height of 10 feet, this
pump will move approximately 70 gallons per minute.
HS3.75S (Series) Trash Pump
  • Pump solids up to 1/4"
  • Built in shaft mounted agitator: Suspends
    solids.
  • Urathane Semi Vortex Impeller and Water
    Plates:  For maximum durability and maintaining
    pump performance.
  • Double Inside Mechanical Seal with SIC
    Faces:  Provides the longest operational life.
  • Oil Lifter:  Provides lubrication of the seal faces.
  • V-Ring Seal Protector:  Protects mechanical
    seal from abrasive particles.
HS3.75S
Unit Specifications
Impeller
Type
Urethane Semi-Vortex
Impeller
Disc Size
3"
mm
Max Head
59 ft
m
Water
Capacity
74 gpm
lpm
HS3.75S
Electrical
Specifications
Power
1/2 Hp
0.56 kW
Phase
Single
Voltage
110V - 220 Optional
Starting
Amperage
37 A
Running
Amperage
10 A
Cable
Length
32 ft
m
HS3.75S
Dimensions &
Weights
Pump
Diameter
12.5
inches
mm
Overall
Height
15.25
inches
mm
Operating
Weight
47 lbs.
kg
HS3.75S Tsurumi "Trash" Pump
for Sandy / Stringy material

Durable trash pump with 1 Hp 3-Inch discharge.  Designed to pump sand, solids and
debris with minimal wear and clogging.
Manual and Automatic versions available.
Quantities limited to available stock.  Prices subject to change without website update.
