Model
No.
Part No. |
Engine
Type |
Blade
Capacity
Cutting Depth |
Cessco Price |
Ship
Wt lbs |
CC1875E1-XL-S-14
5800736 |
7.5 HP Baldor Electric
1 PH, 230 V |
14"
4-5/8" |
$4,939.95 |
420 |
CC1875E1-XL-S-20
5800737 |
7.5 HP Baldor Electric
1 PH, 230 V |
20"
7-5/8" |
$5,009.95 |
420 |
CC1810E3-XL-S-14
5800738A |
10 HP Baldor Electric
3 PH, 230 V |
14"
4-5/8" |
$4,929.95 |
420 |
CC1810E3-XL-S-20
5800739A |
10 HP Baldor Electric
3 PH, 230 V |
20"
7-5/8" |
$4,999.95 |
420 |
CC1810E3-XL-S-14
5800738B |
10 HP Baldor Electric
3 PH, 460 V |
14"
4-5/8" |
$4,929.95 |
420 |
CC1810E3-XL-S-20
5800739B |
10 HP Baldor Electric
3 PH, 460 V |
20"
7-5/8" |
$4,999.95 |
420 |
CC1810E3-XL-S-14
5800738C |
10 HP Baldor Electric
3 PH, 575 V |
14"
4-5/8" |
$4,929.95 |
420 |
CC1810E3-XL-S-20
5800739C |
10 HP Baldor Electric
3 PH, 575 V |
20"
7-5/8" |
$4,999.95 |
420 |
CC1813H-XL-S-14
5800643 |
11 HP Honda
GX390 |
14"
4-5/8" |
$3,379.95 |
370 |
CC1813H-XL-S-20
5800644 |
11 HP Honda
GX390 |
20"
7-5/8" |
$3,399.95 |
370 |
CC1816BV-XL-S-14
5800645 |
16 HP Briggs Vanguard
|
14"
4-5/8" |
$3,629.95 |
400 |
CC1816BV-XL-S-20
5800646 |
16 HP Briggs Vanguard
|
20"
7-5/8" |
$3,689.95 |
400 |
CC1818HY-XL-S-14
5800647 |
18 HP Danfoss Hydraulic*
|
14"
4-5/8" |
$3,859.95 |
390 |
CC1818HY-XL-S-20
5800648 |
18 HP Danfoss Hydraulic*
|
20"
7-5/8" |
$3,919.95 |
390 |
CC1820H-XL-S-14
5800667 |
18 HP Honda
GX620 |
14"
4-5/8" |
$4,999.95 |
445 |
CC1820H-XL-S-20
5800668 |
18 HP Honda
GX620 |
20"
7-5/8" |
$5,019.95 |
445 |
*Hydraulic saws available by request. These saws are dependent upon input flow (GPM).
25 GPM@2500 PSI maximum. Call to determine the right saw for your application. |
Maximum Depth of Cut With 14" Blade: |
4-5/8" |
Maximum Depth of Cut With 20" Blade: |
7-5/8" |
Blade Shaft RPM: |
2,600 |
Blade Shaft Diameter: |
1-1/4" |
Arbor Diameter: with single drive pin |
1" |
Blade Shaft Drive: |
3 belt through 13 HP,
4 belt 16 HP and up |
Blade Mounting: |
Right or left |
Blade Raise and Lower: |
Precision screw feed |
Front Wheel Dimensions: |
5" x 1-1/2" x 3/4" |
Rear Wheel Dimensions: |
6" x 1-1/2" x 5/8" |
Handle Bars: |
Adjustable height |
Transmission: |
Eaton Model 6 or push |
Drive Speed: |
0-80 feet per minute |
Fuel Capacity: |
2 gallons |
Electric Start: |
Standard on 20 HP models |
Low Oil Alert: |
Standard |
Tach/Hour Meter: |
Standard on 20 HP models |
|

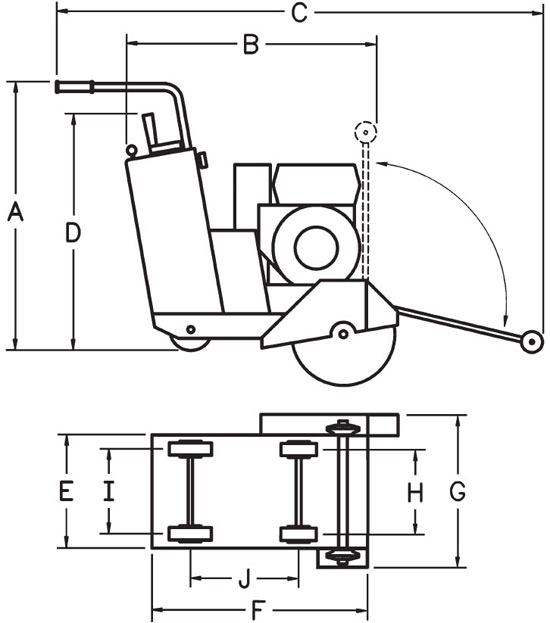

A |
Saw Height |
37-1/2" |
B |
Min length Pointer Up, Handle Down |
36" |
C |
Max length Pointer Down, Handle Up |
72" |
D |
Handle Extension |
33-3/4" |
E |
Frame Width |
16" |
F |
Frame Length |
30-5/8" |
G |
Saw Width |
22-3/8" |
H |
Front Axle Center Length |
12" |
I |
Rear Axle Center Length |
12" |
J |
Wheel Base Length |
15-7/8" |
|
Blade Shaft Max Height |
11-1/2" |
|
|
