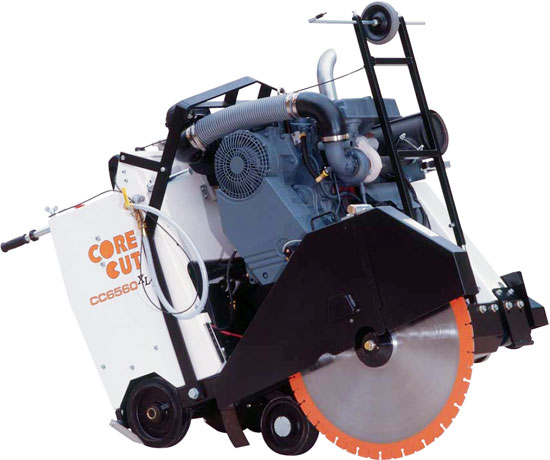

Diamond Products - CC6560XLT 2-Speed Concrete Saw with Dual Shaft

CC6560XLT 2-Speed Concrete Cutting Saw
With Dual Shaft

  • Maximum cutting depth 17-3/4” with a 42” blade guard
  • 10 belt rear shaft, 20 belt front shaft
  • No need to worry about what saw to
    bring to the job
  • Patent-pending design - no gear box!
  • Model / Part No.
  • Specifications
  • Dimensions

Model No.
Part No.

Engine Type

Blade
Capacity
Cutting Depth

Cessco Price

 Ship
Wt lbs
CC6560XLT-20
5800770		 61 HP Deutz Turbo Diesel 20"
7-5/8"		 Call 1680
CC6560XLT-26
5800771		 61 HP Deutz Turbo Diesel 26"
10-5/8"		 Call 1630
CC6560XLT-30
5800772		 61 HP Deutz Turbo Diesel 30"
11-3/4"		 Call 1690
CC6560XLT-36
5800773		 61 HP Deutz Turbo Diesel 36"
14-3/4"		 Call 1705
All CC6560XLT saws come standard with quick-release bladeshaft/flange, slip-on blade guards, bladeshaft tachometer, quick-release rear wheels and double concave roller bearings.
Maximum Depth of Cut:
14-3/4"
Blade Shaft Diameter:
1-3/4"
Arbor Diameter:
1" with single drive pin
Blade Shaft Bearings:
Self-aligning double concave roller
Blade Shaft Drive:
10 belt
Blade Mounting:
Right or left
Blade Raise and Lower:
Electro-hydraulic pump
Blade Coolant:
Dual multi-spray tubes
Blade Guard Attachment:
Slip-on through 30", Bolt-on 36"
Front Wheel Dimensions:
8" x 3" x 1"
Rear Wheel Dimensions:
10" x 3" x 1-1/4"
Handle Bars:
Tilt
Transmission:
Sundstrand-Sauer or
Eaton Model 10
Drive Speed:
0-200 feet per minute
Air Filter:
4 stage
Fuel Capacity:
9 gallons
Electric Start:
Standard
High Temperature Shut-Off:
Gauge and Warning Light
Low Oil Alert:
Warning Light
Hour Meter:
Standard
Tachometer:
Standard
Amp Meter:
Warning Light
Cutting Depth Indicator:
Standard
Quick Disconnect Blade Flanges:
Standard
Frame Lift:
Standard
Quick Release Rear Wheels:
Standard

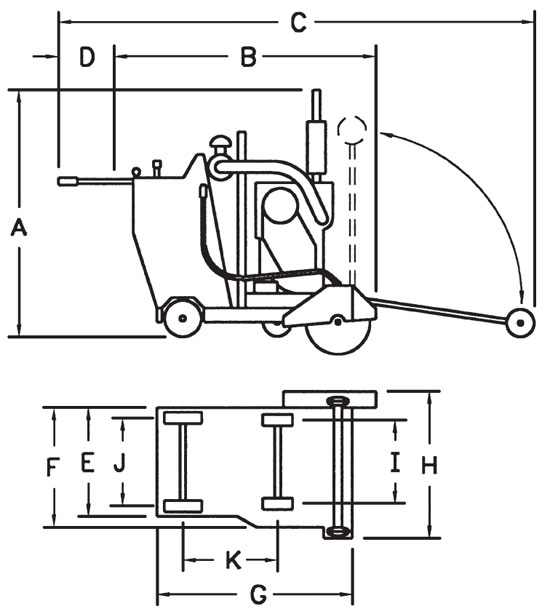

Diamond Products - CC6560XLT 2-Speed Concrete Cutting Saw With Dual Shaft
A
Saw Height
51"
B
Min Length Pointer Up, Handle In
61"
C
Max Length Pointer Down, Handle Out
125"
D
Handle Extension
24"
E
Frame Width (rear)
27-5/8"
F
Frame Width (front)
31-1/4"
G
Frame Length
50-3/4"
H
Saw Width *
37-1/8"
I
Front Axle Center Length
21-3/4"
J
Rear Axle Center Length
24-1/2"
K
Wheel Base Length
23-7/8"
L
Blade Shaft Max Height
22-1/2"
Diamond Products - CC6560XLT Walk Behind Concrete Saw Dimensions
