- Model/Part No.
- Specifications
- Dimensions
Model
No.
Part No. |
Power/Engine
Type |
Blade
Capacity/
Cutting Depth |
Cessco Price |
Ship
Wt lbs |
CC1309HS-XL-14
5800575 |
8 HP Honda GX270 |
14"
4-5/8" |
$2,519.95 |
250 |
CC1309HS-XL-18
5800579 |
8 HP Honda GX270 |
18"
6-5/8" |
$2,569.95 |
250 |
CC1313HS-XL-14
5800576 |
11 HP Honda GX390 |
14"
4-5/8" |
$2,639.95 |
290 |
CC1313HS-XL-18
5800571 |
11 HP Honda GX390 |
18"
6-5/8" |
$2,689.95 |
290 |
CC1305E1-XL-14
5800577 |
5 HP Baldor Electric
1 Phase 230V |
14"
4-5/8" |
$2,789.95 |
367 |
CC1305E1-XL-18
5800580 |
5 HP Baldor Electric
1 Phase 230V |
18"
6-5/8" |
$2,819.95 |
367 |
CC1305E3-XL-14
5800578A |
5 HP Baldor Electric
3 PH 230V |
14"
4-5/8" |
$2,909.95 |
367 |
CC1305E3-XL-18
5800581A |
5 HP Baldor Electric
3 PH 230V |
18"
6-5/8" |
$2,939.95 |
367 |
CC1310E3-XL-20
5800589A |
10 HP Baldor Electric
3 Phase 230V w/switch box
and 20" guard |
20"
7-5/8" |
$4,079.95 |
280 |
Maximum Depth of Cut with 14" Blade: |
4-5/8" |
Maximum Depth of Cut with 18" Blade: |
6-5/8" |
Maximum Depth of Cut with 20" Blade: |
7-5/8" |
Blade Shaft RPM: |
2,600 |
Blade Shaft Diameter: |
1-1/4" |
Arbor Size: with Single Drive Pin |
1" Diameter |
|

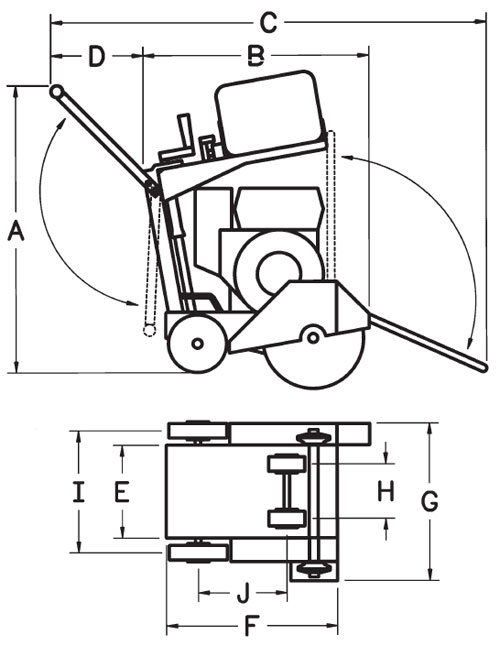

A |
Saw Height |
40" |
B |
Min length Pointer Up, Handle Down |
31-1/4" |
C |
Max length Pointer Down, Handle Up |
60" |
D |
Handle Extension |
13-1/2" |
E |
Frame Width |
12-3/4" |
F |
Frame Length |
23-5/8" |
G |
Saw Width |
22-3/4" |
H |
Front Axle Center Length |
7-1/2" |
I |
Rear Axle Center Length |
16-3/4" |
J |
Wheel Base Length |
12-5/8" |
|
Blade Shaft Max Height |
10-1/2" |
|
|
