695PG Gas Saw
Large 2-Cycle Ductile Iron Chainsaw
Special Sale: Buy any TWO ICS Diamond Chains and get a matching guide bar FREE
- 695PG
Packages - Features &
Benefits - 695PG
Chains - 695PG
Guide Bars - 695PG
Parts - 695PG
Versatility

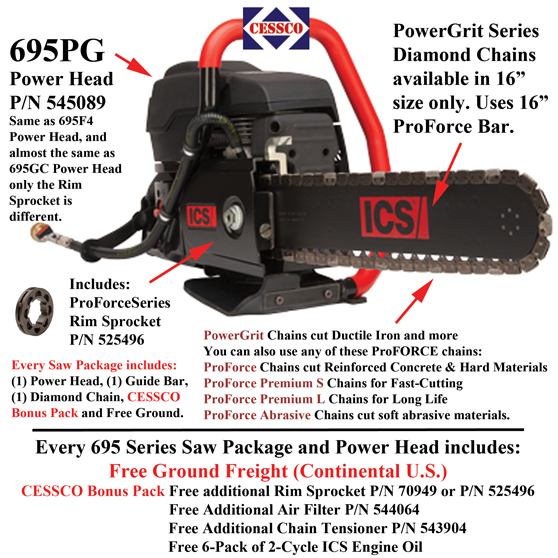

ICS 695PG Ductile Iron Chainsaw Packages
 |
16 Inch Package:
P/N 545018 Includes:
(1) 94cc 695F4 Power Head (1) PowerGrit 16 Inch Ductile Iron Diamond Chain (1) 16" Force Series Guide Bar |
 |
||
$2,485.00
|
|
Included with EVERY Saw Package & Power Head from: CESSCO Inc. |
|
Bonus Pack Includes:
A $71.50 Value
|
BEST VALUE this Power Head & a Combo Pack
|
||||
 |
PowerGrit is a diamond-coated utility chain designed to cut through:
|
|||
|
$1,835.00
|
||||
Save $300.00 off this price when purchased with a Two-Chain / Free Guide Bar "Combo Pack." After adding this to your cart, scroll down and add a "Combo Pack" After you "Order Custom PowerHead" scroll down & add PowerGrit Combo Pack. |
||||
 |
 |
 |
 |
 |
 |
ICS 695PG Features & Benefits
Change the way you cut pipe. PowerGrit® Utility Saw Chain is a new pipe cutting system. From ductile iron to plastic pipe, PowerGrit will get you in and out of the job faster, easier and safer than other methods.
 |

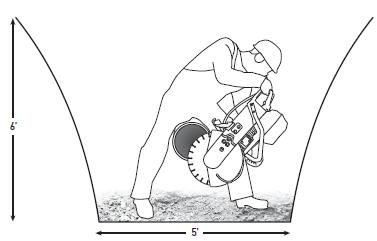

The Problem: To fix a broken pipe you've got to dig a big hole, and then use equipment that wasn't designed for this job. |
The Solution: PowerGrit allows you to cut from on side. Reduce excavation time, increase safety. |
 |
Task |
PowerGrit Method |
Conventional Method |
Advantage |
Excavation |
Excavate to expose pipe and safe cutting window only. Requires only one side cutting access | FULLY expose pipe, create access around entire pipe. Must excavate 2-3 feet beyond the bottom of the pipe. | POWERGRIT: Less excavation. Smaller work zone. Reduced footpring / job impact. |
Hand Digging |
Relatively little hand digging required to provide a safe, clear cutting window. | Extensive hand digging required to provide full circle cutting access. | POWERGRIT: Less hand digging required when using the PowerGrit method. |
Cutting Ergonomics |
Cut clear through a pipe from a single side. No need to move to the other side or cut from below. | Must cut from all sides, including from below. | POWERGRIT: Single side access allow PowerGrit to provide a simpler, faster, and safer cutting process. |
Machine Performance |
Able to cut through a pipe full of water. The direct drive chain assures will perform even when wet. | Circular blade cutters stall when cutting a pipe full of water. Their belt drives can slip when wet. | POWERGRIT: No waiting for pipes to drain. Less down time for equipment. |
Safety |
Safely cut down through pipe - or plunge cut when necessary. No kick-back as associated with traditional wood chain saws. No need to adjust manufacturer guards in order to perform up-cutting. | Must cut from all sides. Many users have become accustomed to adjusting or removing manufacturer safety guard in order to perform the "up cut" | POWERGRIT : Safe alternative to conventional method. |
| 695PG Power Head SPECIFICATIONS | |
| WEIGHT | 21 lbs/9.6 kg (without bar and chain) |
| BAR LENGTH | Up to 16" (40 cm) |
| ENGINE SPEED | 11500 +/- 500 rpm, 2500-2800 rpm idle |
| HORSEPOWER | 6.4 @ 9000 rpm |
| ENGINE TYPE | 2-stroke, single cylinder, air cooled |
| DISPLACEMENT | 5.7 cu. inch (94cc) |
| POWERHEAD DIMENSIONS | 19"L x 14"H x 12"W (48 cm x 36 cm x 30 cm) |
| NOISE LEVEL | 102 dB @ 3 ft (1 m) |
| VIBRATION LEVEL | 8 meters/second2 (front handle) |
| WATER SUPPLY | Minimum 20 psi (1.5 bar) |
| FUEL MIX RATIO | 25:1 (4%) fuel-to-oil |
| FUEL CAPACITY | 0.26 gal (1.0 liter) |
ICS 695PG Ductile Iron Replacement Chains
|
16 Inch ICS Chains for the 695PG Concrete Chainsaw FREE GROUND Freight |
|||
PowerGRIT Chains for cutting Ductile Iron and more. |
||||
Select from Single Chain or Combo Pack: 2 Chains and a Free Bar |
 |
 |
||
$475.00
|
$950.00
|
|||
The guide bar included in the 695PG combo packs: 16 " guide bar for 633F4, 695F4 & 695PG Concrete Chain Saws (P/N 524490).
|
$225.00
|
|||
ProFORCE Chains for cutting Concrete and more. |
||||
Select from Single Chain or Combo Pack: 2 Chains and a Free Bar |
|
|
||
$654.50
|
$1,309.00
|
|||
$752.25
|
$1,504.50
|
|||
$752.25
|
$1,504.50
|
|||
$709.75
|
$1,419.50
|
|||
The guide bar included in the 695F4 combo packs: 16 " guide bar for 633F4, 695F4 & 695PG Concrete Chain Saws (P/N 524490).
|
$225.00
|
|||
PowerGRIT - Cuts ductile iron pipe in the trench FASTER, EASIER and SAFER than other methods. Cut from a single position. Reduce excavation. Save labor. |
ProFORCE - A tough general
purpose diamond chain that
excels in common cutting jobs. |
ProFORCE G- A tough general purpose diamond chain that excels in common cutting jobs. |
ProFORCE Premium S - Speed and strength in one chain.
Built to cut fast in medium to hard
concrete. Use on an ICS 880F4
with 10" Guide Bar. |
ProFORCE Premium L - Delivering longer life in hard
aggregate, this is the best choice
when faced with the more
demanding jobs. |
ProFORCE Abrasive - A
special harder bond capable of standing up to soft natural rocks and abrasive materials like brick and block. |
ICS 695PG Ductile Iron Replacement Bars
Guide bars for use with 695PG saws with economical PowerGrit Series diamond chains |
|||||||||
 |
|||||||||
695PG |
|
||||||||
695PG Repair Parts Price List The prices below include free ground freight. Save money by ordering with Diamond Chains or Guide Bars
 |
Part Number |
Item Name |
Price and Order Button |
70949 |
Rim Sprocket - Gas Saws for TwinMAX chains |
$32.00
|
|
525496 |
Rim Sprocket - Gas Saws for PowerGrit and ProFORCE chains |
$38.00
|
|
544064 |
Air Filter |
$39.00
|
|
543904 |
Chain Tensioner |
$216.00
|
|
543899 |
Starter Cover Assembly |
$216.00
|
|
544118 |
Carburetor Repair Kit |
$85.00
|
|
505882 |
6-Pack of 2-Cycle Oil |
$39.00
|
Sold as a 695PG This saw package includes the following:
The 695PG (PowerGrit) Saw Package is ready to cut:
- Ductile Iron Pipe
- Cast Iron Pipe
- PVC Pipe
- HDPE Pipe
- Insituform Pipe
- DO NOT USE PowerGrit Chain to Cut Concrete or similar materials - This saw can be used as a Concrete Saw when you purchase one of the chains below.
The 695PG (PowerGrit) Saw Package is sold with the same sprocket and Guide Bar as the 695F4. You can purchase and use any 695F4 Chain:
- ProFORCE Chain (concrete light rebar)
- ProFORCE Premium L Chain (concrete long life)
- ProFORCE Premium S Chain (concrete fast cut)
- ProFORCE Abrasive Pipe (soft abrasive material)
- Remember the Bar on 695PGs are 16" - so if you buy a 12" ProFORCE Chain be sure to buy a 12" bar also.
The 695PG (PowerGrit) Saw Package is sold with a ProFORCE sprocket and Guide Bar. To use the TwinMAX Series Chains (below), you will need to buy a TwinMAX Series Sprocket and Guide bar:
- TwinMAX Chain (concrete with light rebar)
- TwinMAX Plus Chain (concrete with heavier rebar)
- TwinMAX Abrasive Chain (soft abrasive material)
- Remember the Sprocket and Bar on 695PGs are ProFORCE Series- so if you need to buy a TwinMAX Series Sprocket and matching Bar for the above chains.
