All Core Drilling Equipment includes:  Free Ground Freight*
Diamond Products M1 Drill Rigs "Our best selling Core Rig"
  • 1" to 10" bit capacity (14" with one
    spacer)
  • Dual switch/outlet control panel &
    amp meter
  • Slide handle permits drilling in tight
    areas
  • Streamlined base and carriage
  • 2-1/2" square column with black
    oxidized finish
  • Quick changeover from vacuum to
    anchor base
  • 6" wheels for better mobility
Order Complete:
Our COMBINATION RIG WITH
VACUUM includes: a combination
anchor/vacuum base, mast,
carriage control panel, vacuum
pump, ceiling jack, motor mount
plate and your choice of drill
motor, and feature a slip clutch
safety override.
Motor
RPM
Combination
Rig P/N
Price / Order Button
15 Amp Milwaukee
M1C-15-MW4097-V
500 / 1000
4245051
$2,249.95
20 Amp Milwaukee
M1C-20-MW4004-V
300 / 600
4245048
$2,299.95
20 Amp Milwaukee
M1C-20-MW4096-V
450 / 900
4245059
$2,299.95
20 Amp Milwaukee
M1C-20-4005-V
600 / 1200
4245049
$2,299.95
20Amp Core Bore
M1C-20-CB-V
350 / 900
4245055
$2,349.95
23 Amp Weka DK22
M1C-23-DK22-V
300 / 640 / 960
4245053
$3,229.95
23 Amp Weka DK22S
M1C-23-DK22S-V
420 / 880 /
1300
4245046
$3,229.95

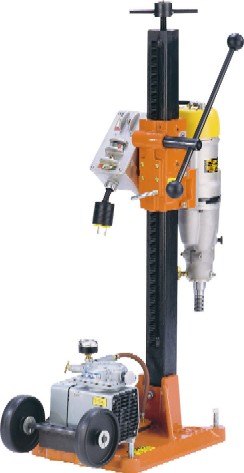

M1 Combination stand (Shown without optional vacuum pump)
Improve Later:
Our COMBINATION RIG WITHOUT VACUUM PUMP
includes:  A combination anchor/vacuum base, mast,
carriage control panel, ceiling jack, motor mount plate
and your choice of drill motor, and feature a slip clutch
safety override.  (Same as above except the vacuum pump
is NOT included).
Motor
RPM
Combination
Rig P/N
Price / Order Button
15 Amp Milwaukee
M1C-15-MW4097
500 / 1000
4245076
$1,979.95
20 Amp Milwaukee
M1C-20-MW4004
300 / 600
4245072
$2,029.95
20 Amp Milwaukee
M1C-20-MW4096
450 / 900
4245073
$2,029.95
20 Amp Milwaukee
M1C-20-4005
600 / 1200
4245074
$2,029.95
20Amp Core Bore
M1C-20-CB
350 / 900
4245071
$2,139.95
23 Amp Weka DK22
M1C-23-DK22
300 / 640 / 960
4245077
$2,969.95
23 Amp Weka DK22S
M1C-23-DK22S
420 / 880 /
1300
4245078
$2,969.95
M1 Anchor Stand
Inexpensive Quality:
Our ANCHOR RIG  includes:  An Anchor base, mast,
carriage control panel, ceiling jack, motor mount plate
and your choice of drill motor, and feature a slip clutch
safety override.
Motor
RPM
Combination
Rig P/N
Price / Order Button
15 Amp Milwaukee
M1A-15-MW4097
500 / 1000
4245006
$1,869.95
20 Amp Milwaukee
M1A-20-MW4004
300 / 600
4245009
$1,929.95
20 Amp Milwaukee
M1A-20-MW4096
450 / 900
4245003
$1,929.95
20 Amp Milwaukee
M1A-20-4005
600 / 1200
4245010
$1,929.95
20Amp Core Bore
M1A-20-CB
350 / 900
4245001
$2,039.95
23 Amp Weka DK22
M1A-23-DK22
300 / 640 / 960
4245008
$2,869.95
23 Amp Weka DK22S
M1A-23-DK22S
420 / 880 /
1300
4245011
$2,869.95
Quantities limited to available stock.  Prices subject to change without website update.
Internet phone hours:
M-F:  8:00-5:00 Pacific
Sat: 10:00-2:00 Pacific
Sun: Closed
Cessco, Inc. © 2008
4222 NE Columbia Blvd.
Portland, OR 97218
1-800-882-4959
Cessco sells Core Drill Bits and Equipment for Less

M1 Core Drill Rigs

Drill Rig Systems
Cessco, Inc. has been helping NW Contractors and government agencies find the right equipment for over 30 years. You can count on our expertise!
These and many other fine products are available at Cessco

Call Toll Free: 1-800-882-4959
Please ask for internet sales
Click on the above guide for
lots of cutting tips from
Diamond Products
For help in selecting the
right drill motor for your job,
click on the chart above -
M1-AA-15
(P/N 4220050)

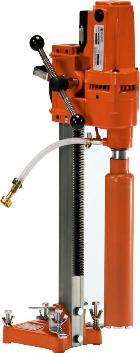

The economical M1-AA-15 Core Drill rig (Bit NOT included)
M1-AA-15 Drill Rig
Convenience and Durability
in a Light Weight Rig!
(Bit not included)
  • 6 Inch bit capacity
  • Weights only 45 lbs.
  • 15 amp, 3.5 Hp Core
    Bore motor
  • Single Speed - 800 RPM
  • Very durable and reliable
  • Water hose connection
  • Spring loaded slide
    handle for easy coring
  • Convenient carrying
    handle on carriage
  • Includes water tap ring
    (P/N 2704100)
$929.95
