Concrete Cutting Saws
CC1313HSXL-18
DP P/N 5800571 Cat. No. 69995
Link to
CC1300
Flyer
Only
$2,649.95
At
Cessco Inc
All Diamond Products
Slab Saws include:

Free Ground Freight!
*Manufacturer charged sales tax
may apply

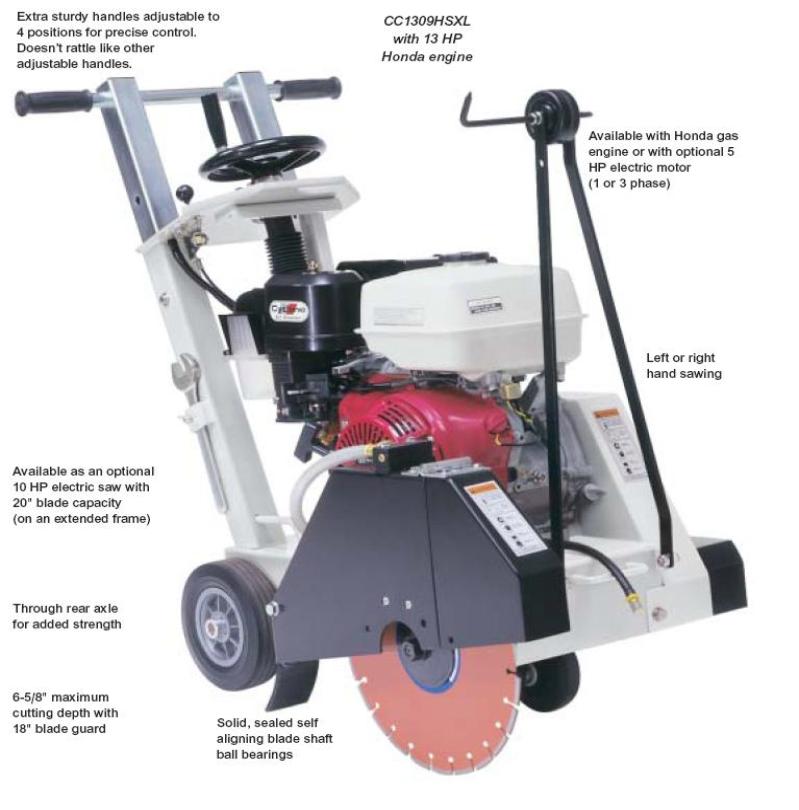

CC1309HS-XL Concrete Push Saws with hand wheel screw feed Raise / Lower system
Model #
Engine Type
Part Number
Catalog
Number
Blade
Capacity
Crated
Weight
Cessco Price
CC1309HSXL-14
9 Hp Honda
5800575
CC1309HSXL14
75066
14"
290
$2,489.95
CC1309HSXL-18
9 Hp Honda
5800579
CC1309HSXL18
75070
18"
290
$2,529.95
CC1313HSXL-14
13 Hp Honda
5800576
CC1313HSXL14
75067
14"
350
$2,489.95
CC1313HSXL-18
13 Hp Honda
5800571
CC1313HSXL18
69995
18"
350
$2,649.95
CC1309E "Electric" Push Saws with hand wheel screw feed Raise / Lower system
Model #
Engine Type
Part Number
Catalog
Number
Blade
Capacity
Crated
Weight
Cessco Price
CC1305E1XL-14
(Single Phase)
5 Hp Lincoln
Electric
5800577
CC1305E1XL14
75068
14"
295
$2,739.95
CC1305E1XL-18
(Single Phase)
5 Hp Lincoln
Electric
5800580
CC1305E1XL18
75071
18"
295
$2,769.95
CC1305E3XL-14
(Three Phase)
5 Hp Lincoln
Electric
5800578
CC1305E3XL14
75069
14"
295
$2,859.95
CC1305E3XL-18
(Three Phase)
5 Hp Lincoln
Electric
5800581
CC1305E3XL18
75072
18"
295
$2,899.95
CC1310E3XL-20
(Three Phase)
10 Hp Electric
5800589
CC1310E3XL20
93810
20"
320
$4,009.95
CC1300XL Specifications
Maximum Depth of Cut:
14" Blade:  4 - 5/8"
18" Blade:  6 - 5/8"
20" Blade:  7 - 5/8"
Blade Shaft RPM:
2,600
Blade Shaft Diameter:
1 1/4"
Arbor Size:
1" Diameter with Single Pin
Drive
CC1300 Options
Description
Part No.
Cat. No.
Cessco
Price
5 Gal. water tank kit
6048213
75206
$155.00
Extra blade guard 14"
6048010
47056
$325.00
Extra blade guard 18"
6048012
02614
$354.00
Propane conversion kit
(for 9Hp Honda)
(4.7 gal. tank, Horizontal vapor)
6040321
10155
$2,038.00
Propane conversion kit
(for 13Hp Honda)
(4.7 gal. tank, Horizontal vapor)
6040322
10156
$2,038.00
Catalytic Muffler for 13Hp
Honda
2501567
78637
$844.00

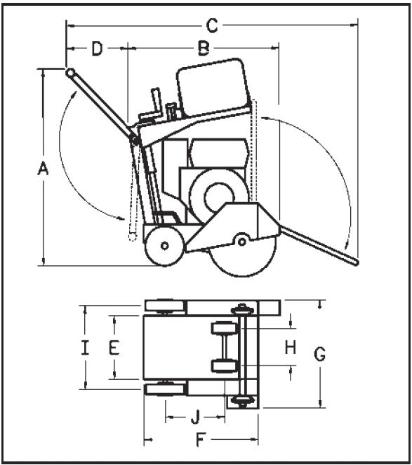

CC1300XL Dimensions
A
Saw Height
40"
B
Min. Length, (pointer up, handle
down)
31 1/4"
C
Max. Length, (pointer down, handle
up)
60"
D
Handle Extension
13 - 1/2"
E
Frame Width
12 - 3/4"
F
Frame Length
23 - 5/8"
G
Saw Width
22 - 3/4"
H
Front Axle Center Length
7 1/2"
I
Rear Axle Center Length
16 - 3/4"
J
Wheel base Length
12 - 5/8"

Blade Shaft Max Height
10 - 1/2"
Quantities limited to available stock.  Prices subject to change without website update.
