Hydraulic Flow Adapter Valves
|
|
Enjoy the convenience and efficiency of powering your hydraulic equipment from skid
steers, backhoes, and other common construction equipment. Available in 8 gpm and 12
gpm ratings.
|
|
 |
|
|
12 GPM

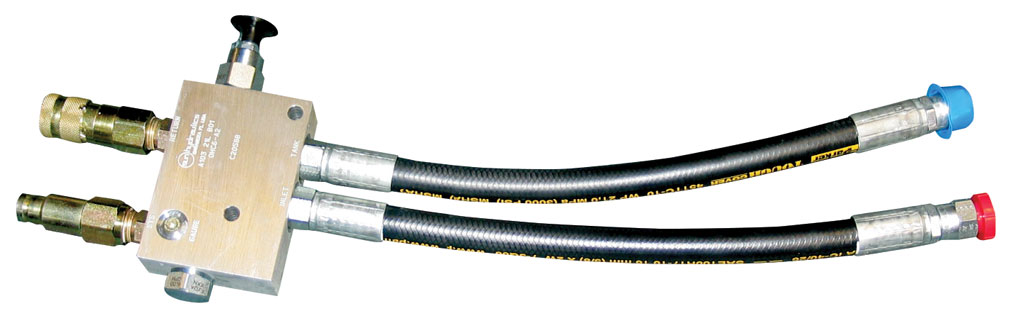

Hydraulic flow adapter valve
(P/N 71287)
|
|
|
|
|
|
|
|
 |
All ICS Products include:
Free Ground Freight*
(*most continental U.S. locations)
|
|
|
Description:

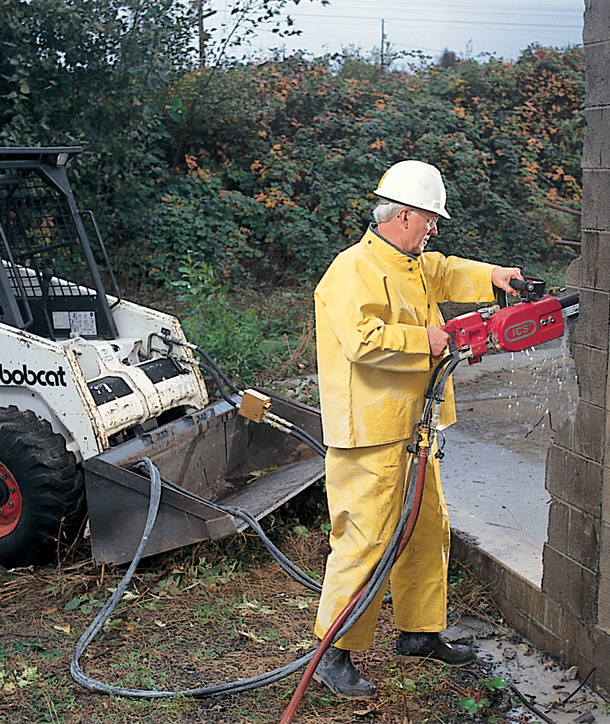

Leave the noise and fumes a comfortable distance away. The ICS hydrualic flow adapter
vlave allows for smooth, quiet operation of any ICS hydraulic saw powered from other
hydraulic equipment on the jobsite such as a skid loader or backhoe. Use with
high-capacity power supplies up to 20 gpm (2500 psi). The flow rate from the adapter
valve is fixed not to exceed the rating of your saw. This model is rated for 12 gallons per
minute (8 gallons per minutes also available).
|
|
|
|
Installation:

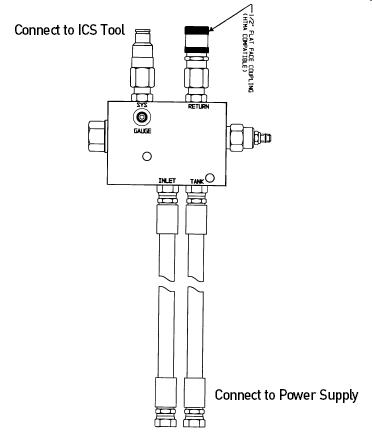

- Connect valve assembly to power supply (fittings and bushings not provided):
- Attach hose from port labeled "inlet" to the pressurized or pump line of the
power supply.
- Attach hose from port labeled "tank" to the tank return line of the power
supply.
- Connect ICS tool hoses to flow adapter using flush-face hydraulic couplings.
|
|
|
- Ensure proper
rotational direction
of ICS tool.
|
|
 |
|
|
|
- If unsure about power supply flow ratings or cooling capacity, contact the
manufacturer of your power supply.
- If limited space is available, the flush-couplings can be moved to auxiliary tool
attachment ports.
|
|
|
 |
|
Product Specifications:
- Flow output: 12
Gallons Per Minute
- Pressure relief
setting: 2500 psi
- Manifold size: 5.5"
width x 5.5" length x
2.5" height
- Weight: 11 lbs.
- Port thread size:
Inlet & tank SAE #10
(7/8 - 14 UNF)
System & Return SAE
#8 (3/4-16 UNF)
- Hose thread size:
7/8-14 UNF
- Part Number: 71287
|
|
|
|
Attention: Hydraulic oil
temperature should be
monitored. Oil temperature
above 150 degrees F (65
degrees C) can reduce
hydraulic component life.
|
|
|
|
|
|
 |
|
|
|
 |
|
|
Hydraulic Flow Adapter Valve data sheet
|
|
|
|
|
|
