CC1507E3-20
Modular Walk-Behind Saw
Modular Walk-Behind Saw
Diamond Products P/N 5801500
Three Phase 7.5Hp 460Volt Motor
20 Inch Blade Guard 7-1/2" Cutting Depth
20 Inch Blade Guard 7-1/2" Cutting Depth
Please Call
1-800-882-4959
for CESSCO pricing
1-800-882-4959
for CESSCO pricing
-
CC1500 Series
Features & Benefits
Please click here -
CC1500 Series
Specifications
Please click here -
Optional Equipment
for CC1500 Saws
Please click here -
Diamond Blades
for CC1500 Saws
Please click here

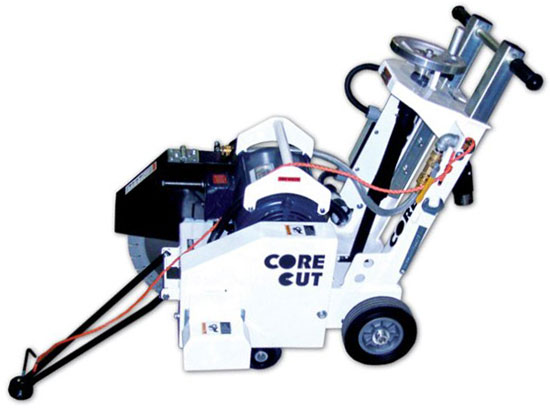

CC1507E3-20 Series Slab Saw Features & Benefits
- Electric powered for areas with limited access and where exhaust fumes are not allowed
- Motor can be removed in limited access areas to allow for a single person operation
- Lightweight aluminum frame
- Screw feed raise and lower
- Heavy duty handle design
Quick Motor Removal Allows Easy
One-Person Transportation
Lightweight Aluminum Frame
and Lightest Weight Motor

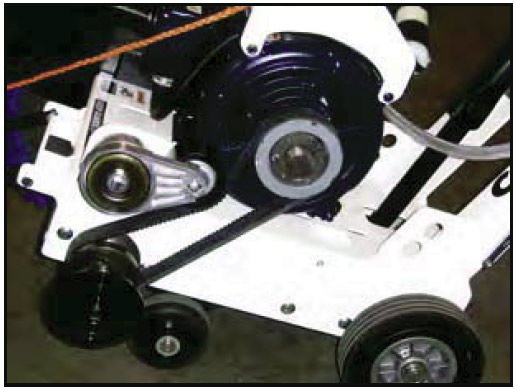

Enhanced V-Belt tensioning system keeps your belts tight

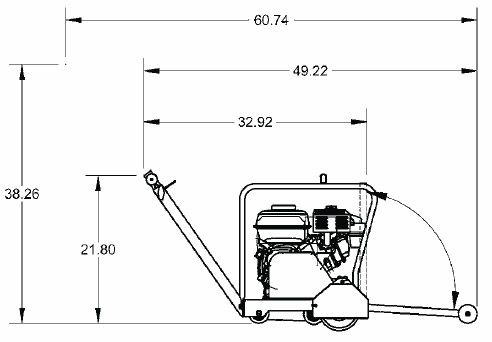

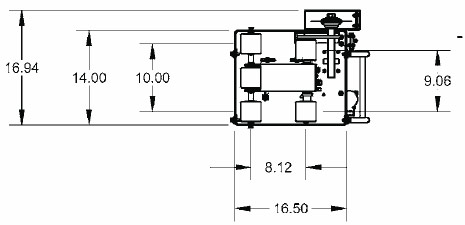

CC1500E3-20 Series Slab Saw Technical Specifications
Maximum depth of cut with a 14 Inch Blade |
4-5/8 Inches |
Maximum depth of cut with a 18 Inch Blade |
6-1/2 Inches |
Maximum depth of cut with a 20 Inch Blade |
7-1/2 Inches |
Blade shaft RPM: |
2,000 |
Blade shaft diameter |
1-1/4" |
Arbor size |
1" with single drive pin |
Handle bars: |
Adjustable |
Blade raise / lower: |
Precision screw feed |
CC1500E Series Saws weigh 185Lbs
Optional Equipment for CC1500E3-20 Series Slab Saws
14 Inch Slip on Blade Guard P/N 6048912:
18 Inch Slip on Blade Guard P/N 6048910:
20 Inch Slip on Blade Guard P/N 6048904:
Diamond Blades for CC1500E3-20 Series Slab Saws
Starting At:
Starting At:
Starting At:
Starting At:
Starting At:
Starting At:
