Multiquip Pumps Include:  Free Ground Freight*
This Honda Powered QP303H 3-inch gas
powered centrifugal pump excels no matter how
much water needs to be moved. Solid
performance in a lightweight package that can be
handled by one person.
Model #
Discharge
Engine
Price
QP303H
3"
Honda
GX-160
4.8 Hp
$729.95
----- Options -----
UWKA
Wheel Kit for QP303H Pump
    $250.00
HD350
3 Inch Discharge Hose - 50' Long
    $120.00
HS320
3 Inch Suction Hose - 20' Long
    $165.00
To order with options call toll free: 1-800-882-4959
Please ask for "Internet Sales"

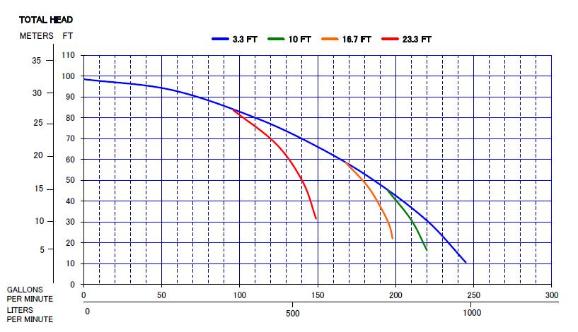

Use this pump curve to determine the flow rate of the QP303H pumps for any given
elevation (head).  For example if you need to pump to a height of 50 feet, this pump will
move approximately 175 gallons per minute with 3.3 feet of suction lift.
QP-303H
Unit Specifications
Suction x
Discharge
3 x 3 inches
76. x 76 mm
Max. Water
Capacity
245 gpm
931 lpm
Max Lift
25 ft
7.6 m
Max Head
98 ft.
30 m
QP-303H
Unit Specs.
Continued
Max
Pressure
42.4 psi
293 kPA
Fuel Tank
Capacity
3.8 Qt.
3.6 L
Optional
Wheel kit
UWK
QP-303H
Dimensions &
Weights
Overall
Length
21.3 In
514 mm
Overall
Width
14.3 In
363.22
mm
Operating
Height
18 In
457 mm
Operating
Weight
77 lbs.
35 kg
  1. Unique volute design for quick positive priming.
  2. Perfect for construction, agricultural jobs.
  3. Pumps up to 245 gallons (931 liters) per minute.
  4. Maximum lift of 25 feet (7.6 meters)
  5. Powered by a dependable Honda GX160 engine.
    General Purpose Centrifugal Pumps
    such as the QP-303H provide an economical
    choice for general purpose de-watering.  Centrifugal
    pumps use a direct-mounted impeller to move the water
    by creating a partial vacuum.  The velocity of the
    rotating impeller pressurizes the water through the
    discharge.  These pumps should be used in clear
    water applications with limited solids, up to about
    10% volume of solids with a maximum solid size of
    1/4 the diameter of the pump ports, for the QP-
    303H with 3 inch ports the maximum size is 3/4".
QP-303H operational diagram
