Pump Selection Handbook
Pumps designed for Low-Level water removal
Available in 110Volt
Single Phase only.
Ideal for complete drainage of flat surfaces where a sump is not available:
rooftops, parking garages, roadways, underpasses, service utility pits, basements, plant maintenance cleanup, pools, and spas

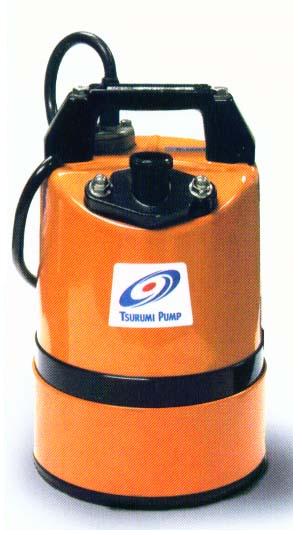

Model: LSC1.4S
0.75" Discharge 2/3Hp
1/16" Capability
$419.95
0.75" Discharge 2/3Hp
1/16" Capability
$419.95

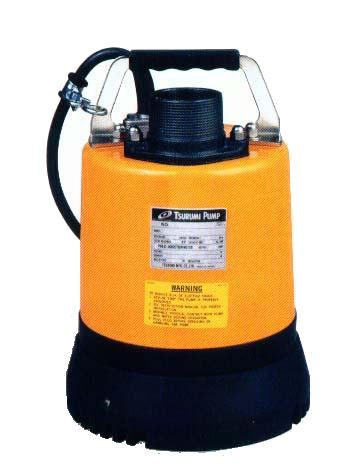

Model: LS42.4S
2" Discharge 3/4Hp
1/4" Capability
$429.95
2" Discharge 3/4Hp
1/4" Capability
$429.95
Model: ST2038P
2" Discharge 1Hp
1/16" Capability
$439.95
2" Discharge 1Hp
1/16" Capability
$439.95
Model |
Pump Size |
Motor Hp |
GPM |
Max. Head |
Dimensions Diameter x Height |
Weight |
LSC1.4S |
0.75" |
2/3 |
45 |
40 Feet |
8.25" x 11.375" |
23 Lbs. |
LSR2.4S |
2" |
2/3 |
60 |
40 Feet |
8.25" x 11.375" |
28 Lbs. |
ST2038P |
2" |
1.0 |
60 |
38 Feet |
7.7" x 15.4" |
31 Lbs. |
Low Level - Pump Curves
As elevation (head) decreases, volume capacity increases.
When using any pump, avoid operating on the edges of the pump curve.
The center of every pump curve represents the pumps maximum efficiency.
As elevation (head) decreases, volume capacity increases.
When using any pump, avoid operating on the edges of the pump curve.
The center of every pump curve represents the pumps maximum efficiency.
