Pump Selection Handbook
Pumps designed for Low-Level water removal
Available in 110Volt
Single Phase only.
Ideal for complete drainage of flat surfaces where a sump is not available:
rooftops, parking garages, roadways, underpasses, service utility pits, basements, plant maintenance cleanup, pools, and spas
LSC1.4S-110Volt
3/4" Pump with 32' Cord
"Garden Hose" Discharge
2/3 Hp, 110V,
45 GPM,
40 ft. Total Head
Pump to 0.04 Inches
$377.00
3/4" Pump with 32' Cord"Garden Hose" Discharge
2/3 Hp, 110V,
45 GPM,
40 ft. Total Head
Pump to 0.04 Inches
$377.00
- Prime pump through discharge outlet for start up at any water level.
- Internal check valve holds prime and prohibits back flow through pump when stopped.
- 3/4" discharge ideally suited for use with a garden hosel

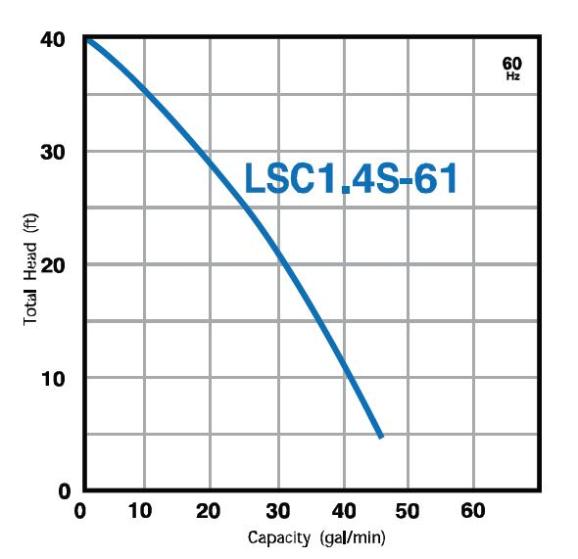

LSC1.4 Series - Pump Curve
As elevation (head) decreases, volume capacity increases.
When using any pump, avoid operating on the edges of the pump curve.
The center of every pump curve represents the pumps maximum efficiency.
As elevation (head) decreases, volume capacity increases.
When using any pump, avoid operating on the edges of the pump curve.
The center of every pump curve represents the pumps maximum efficiency.
Model |
Pump Size |
Motor Hp |
GPM |
Max. Head |
Dimensions Diameter x Height |
Weight |
LSC1.4S |
0.75" |
2/3 |
45 |
40 Feet |
8.25" x 11.375" |
23 Lbs. |
LSR2.4S |
2" |
2/3 |
60 |
40 Feet |
8.25" x 11.375" |
28 Lbs. |
ST2038P |
2" |
1.0 |
60 |
38 Feet |
7.7" x 15.4" |
31 Lbs. |
Multiquip Submersible Pumps
