KTZ Series
Special Order Item
Call 1-800-882-4959 for pricing & availabiltiy

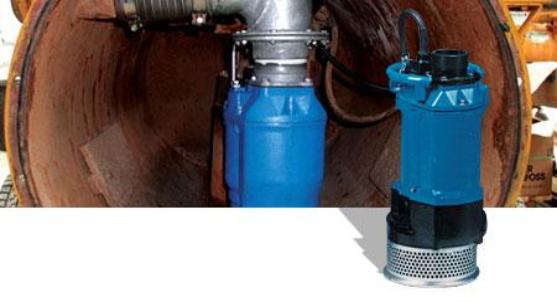

KTZ pumps are designed to withstand the most demanding conditions, including those found in the highly abrasive waters of construction, aggregate, and mining dewatering. Versatility is increased as each pump model has the capability of easily converting between high head and high volume performance with a simple change of the impeller and wear plate
Special Order Item
Call 1-800-882-4959 for pricing & availabiltiy
KTZ Series - Pump Curve
Capacity (gal/min)
As elevation (head) decreases, volume capacity increases.
When using any pump, avoid operating on the edges of the pump curve.
The center of every pump curve represents the pumps maximum efficiency.
Capacity (gal/min)
As elevation (head) decreases, volume capacity increases.
When using any pump, avoid operating on the edges of the pump curve.
The center of every pump curve represents the pumps maximum efficiency.
KTZ Series Features
- Discharge sizes from 2-6 inches and horsepower range from 2-15 hp.
- Utilizes 2-pole, 3600 rpm motors to achieve higher heads.
- High pressure rated mechanical seals are isolated to provide superior motor protection.
- Rugged cast iron construction.
- Pressure relief ports and exclusive oil lifter extend mechanical seal life, eliminating premature wear and failure in high head operations.
- Internal thermal motor protection. Anti-wicking cable entrance.
Model |
Pump Discharge Size |
Motor Hp |
Pole |
Available Voltage |
Diameter (inches) |
Height (inches) |
Weight (lbs) |
KTZ21.5-60 |
2 |
2 |
2-3600 |
230 or 460 |
9 1/4 |
21 9/16 |
64 |
KTZ22.2-60 |
2 |
3 |
2-3600 |
230 or 460 |
9 1/4 |
22 3/8 |
70 |
KTZ23.7-60 |
2 |
5 |
2-3600 |
230 or 460 |
11 1/8 |
24 5/8 |
121 |
KTZ32.2-60 |
3 |
3 |
2-3600 |
230 or 460 |
9 1/4 |
22 3/8 |
70 |
KTZ33.7-60 |
3 |
5 |
2-3600 |
230 or 460 |
11 1/8 |
24 5/8 |
121 |
KTZ35.5-60 |
3 |
7.5 |
2-3600 |
230 or 460 |
12 1/16 |
25 11/16 |
145 |
KTZ411-60 |
4 |
15 |
2-3600 |
230 or 460 |
14 11/16 |
28 11/16 |
286 |
KTZ43.7-60 |
4 |
5 |
2-3600 |
230 or 460 |
11 1/8 |
24 5/8 |
121 |
KTZ45.5-60 |
4 |
7.5 |
2-3600 |
230 or 460 |
12 1/16 |
25 11/16 |
145 |
KTZ47.5-60 |
4 |
12 |
2-3600 |
230 or 460 |
13 |
26 |
205 |
KTZ611-60 |
4/6 |
15 |
2-3600 |
230 or 460 |
14 11/16 |
28 11/16 |
286 |
KT67.5-60 |
4/6 |
10 |
2-3600 |
230 or 460 |
13 |
26 |
206 |
