Pump Selection HandbookTsurumi HSD2.55S Trash Pumps
2" Pump with 32' Cord
3/4 Hp, 115V
53 GPM,
39 ft. Total Head
Sand and trash handling pumps with built in agitator. use when pumping "brown" water,
sandy water, or water with small debris. Single-phase agitator pumps suspend solids when pumping sand and debris.

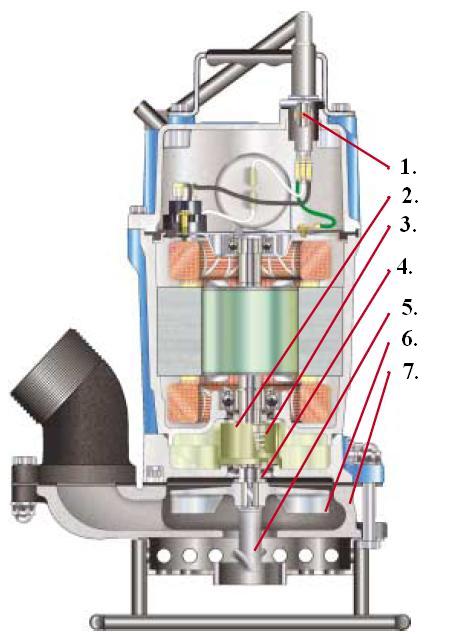

Features:
- Cable Length: 32 Feet
- Anti-wicking block prevents water incursion
- Oil Lifter extends seal life by ten times
- Dual Inside Mechanical Seal with silicon carbide faces provides longer operational life of any seal available
- V-Ring Seal design protects mechanical seal from abrasive particles
- Built-in larger shaft mounted agitator suspends solids & eliminates clogging
- High Chromium Iron impeller & agitator
- Ductile iron pump casing
- 3/4 HP motor; larger than HS2.4S
Applications:
- Designed to pump water containing sand, solids, and debris with minimal wear and clogging

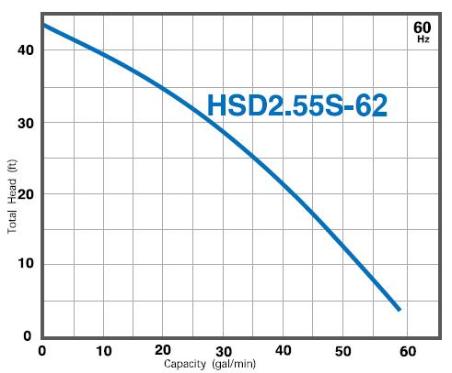

Pump Curve for HSD2.55S Pumps:
As elevation (head - left side of graph) decreases, volume capacity increases.
When using any pump, avoid operating on the edges of the pump curve.
The center of every pump curve represents the pumps maximum efficiency.
When using any pump, avoid operating on the edges of the pump curve.
The center of every pump curve represents the pumps maximum efficiency.
Specifications of Submersible Trash Pumps:
Model |
Pump Size |
Motor Hp |
Max. Head |
GPM |
Dimensions Diameter x Height |
Weight |
HS2.4S |
2" |
1/2 |
35 Feet |
50 |
10.0625" x 12.9375" |
25 Lbs. |
HSD.255S |
2" |
3/4 |
39 Feet |
53 |
9.75" x 15.375" |
33 Lbs. |
HSZ2.4S |
2" |
1/2 |
35 Feet |
50 |
13.5" x 17.5" |
42 Lbs. |
ST2010TCUL |
2" |
1/2 |
45 Feet |
95 |
10.3" x 24.5" |
77 Lbs. |
ST2040T |
2" |
1/2 |
40 Feet |
79 |
10.3" x 16.8" |
34 Lbs. |
HS3.75 |
3" |
1 |
59 Feet |
74 |
12.4375" x 15.25" |
47 Lbs. |
HSZ3.75S |
3" |
1 |
59 Feet |
74 |
13.5" x 17.5" |
42 Lbs. |
