Pump Selection HandbookTsurumi LB480A Automatic Pumps
Model: LB480A
110Volt Single Phase (1Ø)
2" Discharge 2/3Hp
$434.00
Top discharge provides maximum motor cooling while allowing continu ous duty operation.
Available in single-phase or three-phase. These LB-Series Pumps (except LB480A) fit into 8-inch pipes.
Features:
- Powerful pumps built with durable materials in an easy handling design
- Top discharge provides maximum motor cooling efficiency allowing continuous duty operation at low water levels and extended dry-run capability

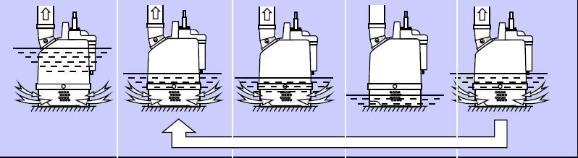

- LB-480A / LB-800A features Automatic Water Level Sensor that performs like the non-automatic pump with no special float installation required
- LB480
- Urethane, Semi Vortex Impeller and Wear Plates for maximum durability and maintaining pump performance
- Dual Inside Mechanical Seal With SiC faces provides longer operational life
- Oil Lifter provides lubrication of the seal faces (Patented)
- V-Ring Seal design protects mechanical seal from abrasive particles
- LB480A
- No control panel or float switches required
- Performs like the non-automatic pump with no special float installation required
- Requires very small space to operate - only 8 3/4" diameter
Applications:
- Top discharge provides maximum motor cooling efficiency allowing continuous duty operation at low levels and extended dry-run capacity.

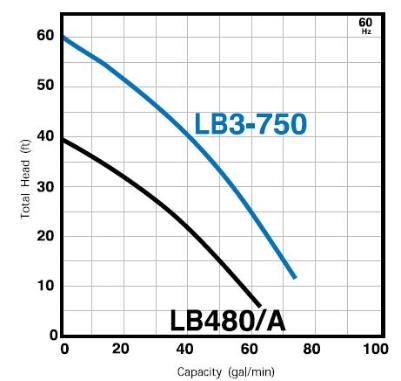

LB480 & LB480A Pump Curve:
Specifications of LB480A
General Purpose Submersible Pumps:
General Purpose Submersible Pumps:
Model |
Pump Size |
Motor Hp |
Max. Head |
GPM |
Dimensions Diameter x Height |
Weight |
YELLSUB |
1.25" |
1/4 |
15 Feet |
22 |
6.25" x 9.5" |
6 Lbs. |
50PU2.15S |
2" |
1/5 |
19 Feet |
40 |
8" x 12" |
13 Lbs. |
50PU2.25S |
2" |
1/3 |
25 Feet |
55 |
9" x 14" |
16 Lbs. |
50PU2.4S |
2" |
1/2 |
43 Feet |
80 |
9" x 14" |
25 Lbs. |
50PU2.75S |
2" |
1 |
55 Feet |
90 |
9" x 15" |
15 Lbs. |
LB-480 |
2" |
2/3 |
40 Feet |
60 |
8-3/4" x 11-1/4" |
30 Lbs. |
LB-480A |
2" |
2/3 |
40 Feet |
60 |
8-3/4" x 11-1/4" |
30 Lbs. |
LB-800 |
2" |
1 |
60 Feet |
80 |
8-3/4" x 23-5/16" |
38 Lbs. |
LB-800A |
2" |
1 |
60 Feet |
80 |
8-3/4" x 23-5/16" |
38 Lbs. |
LB-1500 |
3" |
2 |
65 Feet |
100 |
7-3/8" x 23-5/16" |
85 Lbs. |
SS233 |
2" |
1/2 |
22 Feet |
60 |
8.1" x 14.5" |
15.5 Lbs. |
ST2037 |
2" |
1-1/2 |
37 Feet |
73 |
7.4" x 15.4" |
31 Lbs. |
ST2047 |
2" |
1 |
47 Feet |
87 |
7.4" x 15.4" |
33 Lbs. |
NK2-15 |
3" |
2 |
65 Feet |
100 |
9.4375" x 24.5" |
63.5 Lbs. |
NK2-22 |
3" |
3 |
85 Feet |
130 |
9.4375" x 24.5" |
64 Lbs. |
NK2-22L |
3" |
3 |
55 Feet |
180 |
9.25" x 26.5" |
88 Lbs. |
ST3020BCUL |
3" |
2 |
72 Feet |
170 |
6.7" x 28.5" |
38 Lbs. |
