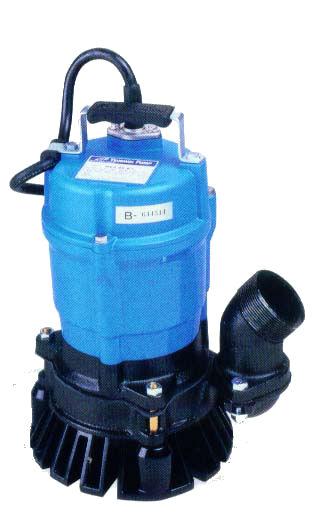

Pump Selection HandbookTsurumi HS2.4S Pumps
Durable trash pumps with 2 inch discharge & 1/2HP motor. Designed to pump water containing sand, solids and debris with minimal wear and clogging.
Model: HS2.4S
110Volt Single Phase (1Ø)
2" Discharge 1/2Hp
$297.00
110Volt Single Phase (1Ø)
2" Discharge 1/2Hp
$297.00
Model: HS2.4S
220Volt Single Phase (1Ø)
Special order item: Allow 14-21 days
$297.00
220Volt Single Phase (1Ø)
Special order item: Allow 14-21 days
$297.00
Features:
- Cable length: 20 feet
- 110 Volts / 5.4 Amps
- Built-in shaft mounted agitator suspends solids
- Urethane Semi Vortex Impeller for maximum durability and pump performance
- Dual Inside Mechanical Seal With SiC faces provides longest operational life
- Oil Lifter provides lubrication of the seal faces (Patented)
- V-Ring Seal design protects mechanical seal from abrasive particle
Applications:
- Designed to pump water containing sand, solids, and debris with minimal wear and clogging

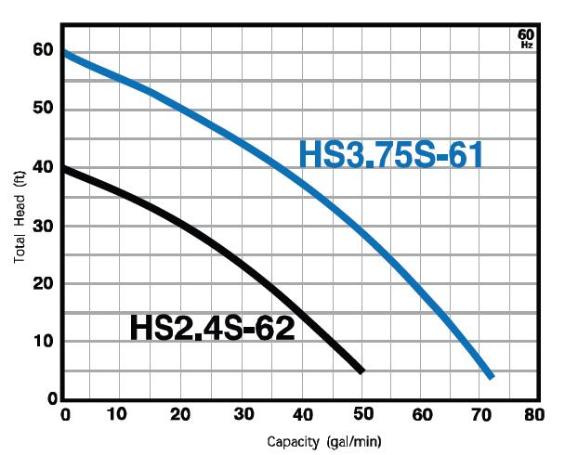

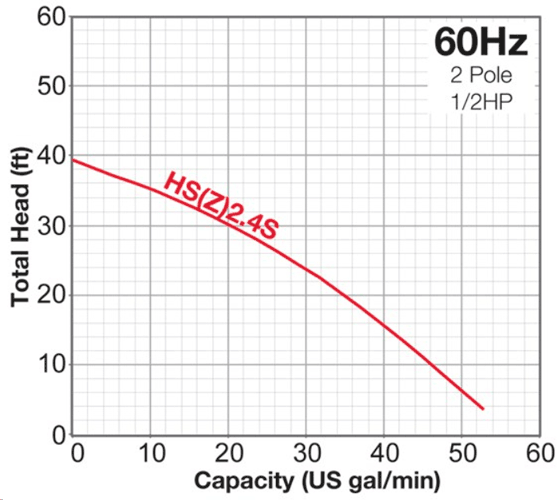

Pump Curve for HS2.4S & HSZ2.4S Pumps:
As elevation (head - left side of graph) decreases, volume capacity increases.
When using any pump, avoid operating on the edges of the pump curve.
The center of every pump curve represents the pumps maximum efficiency.
When using any pump, avoid operating on the edges of the pump curve.
The center of every pump curve represents the pumps maximum efficiency.
Specifications of Submersible Trash Pumps:
Model |
Pump Size |
Motor Hp |
Max. Head |
GPM |
Dimensions Diameter x Height |
Weight |
HS2.4S |
2" |
1/2 |
35 Feet |
50 |
10.0625" x 12.9375" |
25 Lbs. |
HSD.255S |
2" |
3/4 |
39 Feet |
53 |
9.75" x 15.375" |
33 Lbs. |
HSZ2.4S |
2" |
1/2 |
35 Feet |
50 |
13.5" x 17.5" |
42 Lbs. |
ST2010TCUL |
2" |
1/2 |
45 Feet |
95 |
10.3" x 24.5" |
77 Lbs. |
ST2040T |
2" |
1/2 |
40 Feet |
79 |
10.3" x 16.8" |
34 Lbs. |
HS3.75 |
3" |
1 |
59 Feet |
74 |
12.4375" x 15.25" |
47 Lbs. |
HSZ3.75S |
3" |
1 |
59 Feet |
74 |
13.5" x 17.5" |
42 Lbs. |
