Pump Selection HandbookTsurumi LB800 Pumps
The LB-800 is a
powerful pump built
with durable
materials in an
easy to handle
design. With top
discharge capability
for maximum motor
cooling efficiency,
allowing continuous
duty operation at
low water levels
and extended dry-
run capability.
Model: LB800
115Volt Single Phase (1Ø)
2" Discharge 1/2Hp
115Volt Single Phase (1Ø)
2" Discharge 1/2Hp
Model: LB800
230Volt Single Phase (1Ø)
Special order item: Allow 14-21 days
230Volt Single Phase (1Ø)
Special order item: Allow 14-21 days
Features:
- Powerful pumps built with durable materials in an easy handling design
- Top discharge provides maximum motor cooling efficiency allowing continuous duty operation at low water levels and extended dry-run capability
- LB800
- Designed to fit an 8" pipe
- Up to 59’ shut off head
- Available in 230V single-phase
- Dual Inside Mechanical Seal With SiC faces provides longer operational life
- Oil Lifter provides lubrication of the seal faces (Patented)
- LB800A
- Up to 59' shut off head
- Dual Inside Mechanical Seal With SiC faces provides longer operational life
- Performs like the non-automatic pump with no special float installation required
- Oil Lifter provides lubrication of the seal faces (Patented)
Applications:
- Top discharge provides maximum motor cooling efficiency allowing continuous duty operation at low levels and extended dry-run capacity.

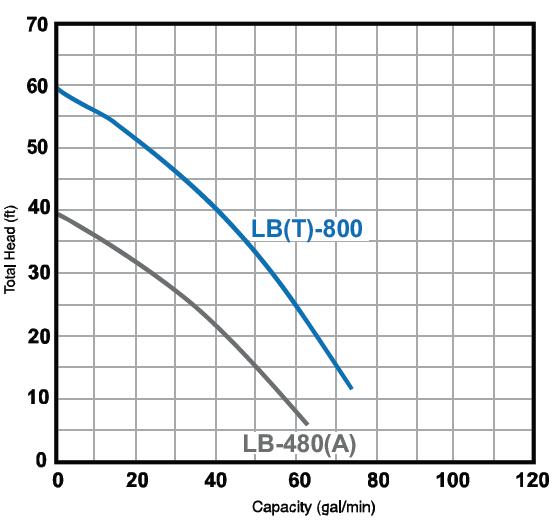

LB800 & LB800A Pump Curve:
Specifications of LB800
General Purpose Submersible Pumps:
General Purpose Submersible Pumps:
Model |
Pump Size |
Motor Hp |
Max. Head |
GPM |
Dimensions Diameter x Height |
Weight |
YELLSUB |
1.25" |
1/4 |
15 Feet |
22 |
6.25" x 9.5" |
6 Lbs. |
50PU2.15S |
2" |
1/5 |
19 Feet |
40 |
8" x 12" |
13 Lbs. |
50PU2.25S |
2" |
1/3 |
25 Feet |
55 |
9" x 14" |
16 Lbs. |
50PU2.4S |
2" |
1/2 |
43 Feet |
80 |
9" x 14" |
25 Lbs. |
50PU2.75S |
2" |
1 |
55 Feet |
90 |
9" x 15" |
15 Lbs. |
LB-480 |
2" |
2/3 |
40 Feet |
60 |
8-3/4" x 11-1/4" |
30 Lbs. |
LB-480A |
2" |
2/3 |
40 Feet |
60 |
8-3/4" x 11-1/4" |
30 Lbs. |
LB-800 |
2" |
1 |
60 Feet |
80 |
8-3/4" x 23-5/16" |
38 Lbs. |
LB-800A |
2" |
1 |
60 Feet |
80 |
8-3/4" x 23-5/16" |
38 Lbs. |
LB-1500 |
3" |
2 |
65 Feet |
100 |
7-3/8" x 23-5/16" |
85 Lbs. |
SS233 |
2" |
1/2 |
22 Feet |
60 |
8.1" x 14.5" |
15.5 Lbs. |
ST2037 |
2" |
1-1/2 |
37 Feet |
73 |
7.4" x 15.4" |
31 Lbs. |
ST2047 |
2" |
1 |
47 Feet |
87 |
7.4" x 15.4" |
33 Lbs. |
NK2-15 |
3" |
2 |
65 Feet |
100 |
9.4375" x 24.5" |
63.5 Lbs. |
NK2-22 |
3" |
3 |
85 Feet |
130 |
9.4375" x 24.5" |
64 Lbs. |
NK2-22L |
3" |
3 |
55 Feet |
180 |
9.25" x 26.5" |
88 Lbs. |
ST3020BCUL |
3" |
2 |
72 Feet |
170 |
6.7" x 28.5" |
38 Lbs. |
