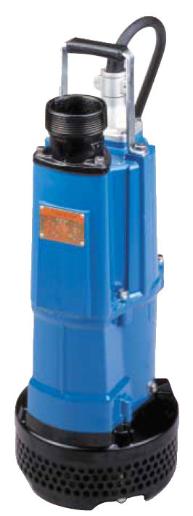

Pump Selection HandbookTsurumi NK2-15 Series Pumps
Model: NK2-15110Volt/220Volt Dual Voltage
3" Discharge 2Hp
Contractor pumps for high volume single phase dewatering applications.
Features:
- Optional SAND KIT available to suspend solids and prevent clogging (NK2-15SK, NK3-22SK)
- Synthetic Rubber Wear Parts for maximum durability and pump performance
- Continuous duty air-filled motor
- Ductile iron semi-vortex impeller
- Dual voltage available on NK2-15 model: Terminal board for voltage reconnect allows for change from 110V to 220V (NK2-15 only)
Applications:
- Heavy duty, high head single-phase pumps available in 110v or 220v. Optional agitator kits allow continuous duty when pumping abrasive materials.
Pump Curve:
Specifications of NK2-15 Heavy duty,
high head single-phase pumps:
high head single-phase pumps:
Model |
Pump Size |
Motor Hp |
GPM |
Max. Head |
Dimensions Diameter x Height |
Weight |
YELLSUB |
1.25" |
1/4 |
22 |
15 Feet |
6.25" x 9.5" |
6 Lbs. |
LB-480 |
2" |
2/3 |
60 |
40 Feet |
8-3/4" x 11-1/4" |
30 Lbs. |
LB-800 |
2" |
1 |
80 |
60 Feet |
8-3/4" x 23-5/16" |
38 Lbs. |
SS233 |
2" |
1/2 |
60 |
22 Feet |
8.1" x 14.5" |
15.5 Lbs. |
ST2037 |
2" |
1-1/2 |
73 |
37 Feet |
7.4" x 15.4" |
31 Lbs. |
ST2047 |
2" |
1 |
87 |
47 Feet |
7.4" x 15.4" |
33 Lbs. |
NK2-15 |
3" |
2 |
100 |
65 Feet |
9.4375" x 24.5" |
63.5 Lbs. |
NK3-22 |
3" |
3 |
130 |
85 Feet |
9.4375" x 24.5" |
64 Lbs. |
NK3-22L |
3" |
3 |
180 |
55 Feet |
9.25" x 26.5" |
88 Lbs. |
ST3020BCUL |
3" |
2 |
170 |
72 Feet |
6.7" x 28.5" |
38 Lbs. |
