Multiquip Pumps Include:  Free Ground Freight*
This is a Honda Powered QP303H 4-inch gas
powered centrifugal pump.  Municipalities
requiring a pump to clear streets and public works
projects can always find a use for a Multiquip
centribugal pump. Ideally suited for water transfer
between holding tanks.
Model #
Discharge
Engine
Price
QP402H
4"
Honda
GX-240
7.1 Hp
$1,409.95
----- Options -----
UWKA
Wheel Kit for QP402H Pump
    $250.00
HD450
4 Inch Discharge Hose - 50' Long
    $220.00
HS420
4 Inch Suction Hose - 20' Long
    $315.00
To order with options call toll free: 1-800-882-4959
Please ask for "Internet Sales"

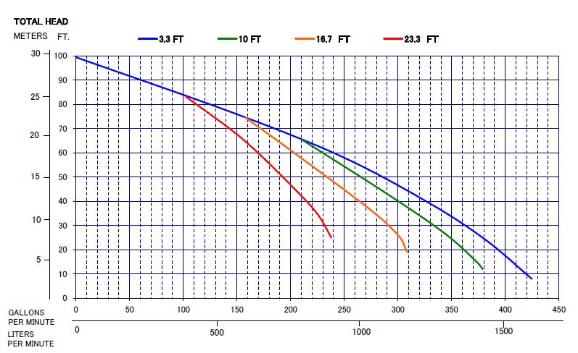

Use this pump curve to determine the flow rate of the QP402H pumps for any given
elevation (head).  For example if you need to pump to a height of 50 feet, this pump will
move approximately 290 gallons per minute with 3.3 feet of suction lift.
  1. Pumps up to 425 gallons (931 liters) per minute.
  2. Self-Priming pump
  3. Fueled by a Honda HX240 Gasoline Engine
  4. Weighs 145 pounds (65 kg)
  5. Encased in a heavy-duty tubular steel frame for easy transport,
    component protection.
QP-402H
Unit Specifications
Suction x
Discharge
4 x 4 inches
101. x 101 mm
Max. Water
Capacity
425 gpm
1616
lpm
Max Lift
25 ft
7.6 m
Max Head
100 ft.
30 m
QP-402H
Unit Specs.
Continued
Max
Pressure
43.3 psi
299 kPA
Fuel Tank
Capacity
6.3 Qt.
6 L
Optional
Wheel kit
UWK
QP-402H
Dimensions &
Weights
Overall
Length
30.0 In
760 mm
Overall
Width
19.0 In
480 mm
Operating
Height
24.3 In
610 mm
Operating
Weight
145 lbs.
65 kg
    General Purpose Centrifugal Pumps
    such as the QP-402H provide an economical
    choice for general purpose de-watering.  Centrifugal
    pumps use a direct-mounted impeller to move the water
    by creating a partial vacuum.  The velocity of the
    rotating impeller pressurizes the water through the
    discharge.  These pumps should be used in clear
    water applications with limited solids, up to about
    10% volume of solids with a maximum solid size of
    1/4 the diameter of the pump ports, for the QP-
    303H with 3 inch ports the maximum size is 3/4".
QP-303H operational diagram
