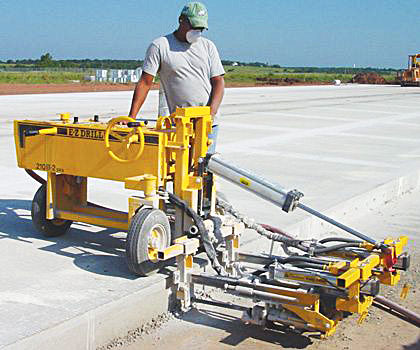

EZ-Drill 210B-2 SRA Two-Gang Drill System

This innovative slab rider drill is designed to achieve greater efficiency when drilling concrete slab. The model 210B-2 can drill within six inches of a corner and features a vertical height adjustment that allows you to drill on center between 6 to 24" thick. With a maximum 18" drilling depth, the simultaneous two-gang drill system is adjustable to drill every 12 to 36" on center and can be customized to meet wider spacing requirements. Pneumatically powered, the 210B-2 SRA requires 200 cfm and fits within a 4-foot patch. This unit can also be configured for on-grade and vertical drilling. With its patented tri-steering system, repositioning is quick and easy.

ADDITIONAL FEATURES AND OPTIONS:

Hole Drill Spacing Guide: achieve greater productivity when repositioning
On-Grade Conversion: grade drilling is easy with this optional conversion kit
Dust Collection System: optional pneumatic dust collection system minimizes dust
Auto Alignment: allows for faster repositioning of hole sets
Quick Release Bit Guide: quickly and easily change out one-piece bits, bushings, and drill steel
Patented Roller Bearing Feed: minimizes friction and increases production for faster drilling

Download an
EZ-Drill Brochure

Please Call 800-882-4959 for Pricing & Availability

EZ-DRILL 210B-2 SRA SPECIFICATIONS
HORIZONTAL POSITION	VERTICAL POSITION
Lower Length (A): 46" (116.8 cm)	Lower Length (A): N/A
Lower Length (A) + (C): 100" (254.0 cm)	Lower Length (A) + (C): 73" (185.4 cm)
Cart Length (C): 54" (137.2 cm)	Cart Length (C): 54" (137.2 cm)
Wheel Base (D): 48" (121.9 cm)	Wheel Base (D): 48" (121.9 cm)
Width: 54" (137.2 cm)	Width: 54" (137.2 cm)
Height (E): 39" (99.1 cm)	Height (E): Varies
Weight: 1150 lbs. (522.1 kg)	Weight: 1,150 lbs (522.1 kg)
Drill Distance from Corner: 6" (15.2 cm)	Drill Distance from Corner: N/A
Drill Distance from Ground: 3" (7.6 cm)	Drill Distance from Ground: Up to 12" (30.5 cm)
Drill Depth (std.): 18" (45.7 cm)	Drill Depth (std.): 18" (45.7 cm)
Drill Bit Diameter: 5/8 to 2-1/2" (15.9 cm to 63.5 cm)	Drill Bit Diameter: 5/8 in to 2-1/2" (15.9 mm to 63.5 mm)
Distance from Wheel to Center of Bit (F): N/A	Distance from Wheel to Center of Bit (F): 21-1/2" (54.6 cm)
Drill Motor (pneumatic): CP 32A	Drill Motor (pneumatic): CP 32A
Drill Motor Weight: 54 lbs (24.5 kg)	Drill Motor Weight: 54 lbs (24.5 kg)
Chuck Size (std.): 7/8 in x 3-1/4" (22.2 mm x 82.6 mm)	Chuck Size (std.): 7/8 in x 3-1/4" (22.2 mm x 82.6 mm)
Air Consumption (minimum): 200 cfm (5.6 m 3 /min)	Air Consumption (minimum): 200 cfm (5.6 m 3 /min)
Operating Pressure: 90 psi (6.2 bar)	Operating Pressure: 90 psi (6.2 bar)
Impact (ft. lbs./blow): 36 fpb (49 J)	Impact (ft. lbs./blow): 36 fpb (49 J)
