EZ Drill Concrete Dowel Drills

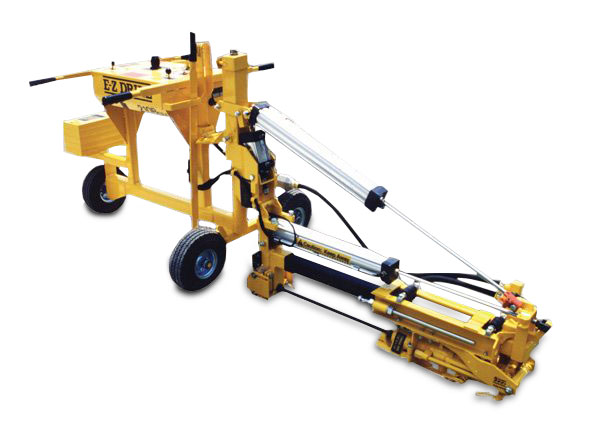

EZ-Drill 210B SRA Single Drill System

EZ-Drill 210B SRA;

Drilling concrete slab has never been easier or more efficient with the 210B SRA slab rider drill from EZ-Drill. Whether you’re drilling horizontally, vertically (or at any angle, for that matter) the 210B SRA won’t disturb the subgrade. With depths up to 18" and diameter holes from 5/8 to 2-1/2", you’ll consistently achieve exceptionally accurate performance. The auto-alignment feature tracks hole placement level for fast and easy repositioning. The friction-free roller bearing feed system provides longer wear life, less maintenance and minimized downtime. You can’t beat EZ-Drill for your next lane extension, airport, or full-depth repair project.

Please Call 800-882-4959 for Pricing & Availabilty

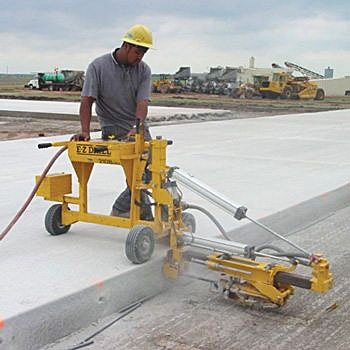

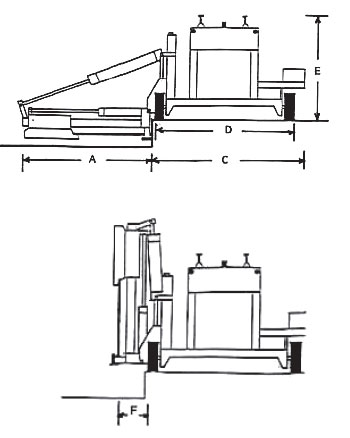

EZ-Drill 210B SRA in the field; EZ-Drill 210B-2 SRA diagram;
EZ-DRILL 210B SRA SPECIFICATIONS
HORIZONTAL POSITION VERTICAL POSITION
Lower Length (A): 16" (116 cm) Lower Length (A): N/A
Overall Length (A) + (C): 94" (238.8 cm) Lower Length (A) + (C): 73" (185.4 cm)
Cart Length (C): 48" (121.9 cm) Cart Length (C): 54" (137.2 cm)
Wheel Base (D): 42" (106.7 cm) Wheel Base (D): 48" (121.9 cm)
Width: 32" (81.3 cm) Width: 54" (137.2 cm)
Height (E): 32" (81.3 cm) Height (E): Varies
Weight: 385 lbs (174.4 kg) Weight: 1,150 lbs (522.1 kg)
Drill Distance from Corner:
6" (15.2 cm)
Drill Distance from Corner: N/A
Drill Distance from Ground:
3" (7.6 cm)
Drill Distance from Ground:
Up to 12" (30.5 cm)
Drill Depth (std.): 18" (45.7 cm) Drill Depth (std.): 18" (45.7 cm)
Drill Bit Diameter: 5/8 to 2-1/2" (15.9 cm to 63.5 cm) Drill Bit Diameter: 5/8 to 2-1/2" (15.9 cm to 63.5 cm)
Drill DIstance from Wheel to Center of Bit (F): N/A Drill DIstance from Wheel to Center of Bit (F): 21-1/2" (54.6 cm)
Drill Motor (Pneumatic): CP 32A Drill Motor (Pneumatic): CP 32A
Drill Motor Weight: 54 lbs (24.5 kg) Drill Motor Weight: 54 lbs (24.5 kg)
Chuck Size (std.): 7/8" x 3-1/4" (22.2 mm x 82.6 mm) Chuck Size (std.): 7/8" x 3-1/4" (22.2 mm x 82.6 mm)
Air Consumption: (minimum) 100 cfm (2.8 m 3 /min) Air Consumption: (minimum) 100 cfm (2.8 m 3 /min)
Operating Pressure: 90 psi (6.2 bar) Operating Pressure: 90 psi (6.2 bar)
  Impact: (ft. lbs./blow) 36 fpb (49 J)
