680ES Index

680ES Medium Gas Directory

WARNING: Read and understand all safety warnings and
instructions in the Operator Manual before you use this equipment.

All Medium Gas Saws use the same Guide Bars and Diamond Chains

680ES Saws

3/8" Pitch

General Contractor
and Ductile Iron
Saw Packages
680ES-GC & 680ES-PG

680ES New Saws
click here

Guide Bars

3/8" Pitch or 0.444" Pitch
Guide Bars for
12" / 14" Concrete Chains
10" Ductile Chains
Cutting Depth

680ES Bars
click here

Parts

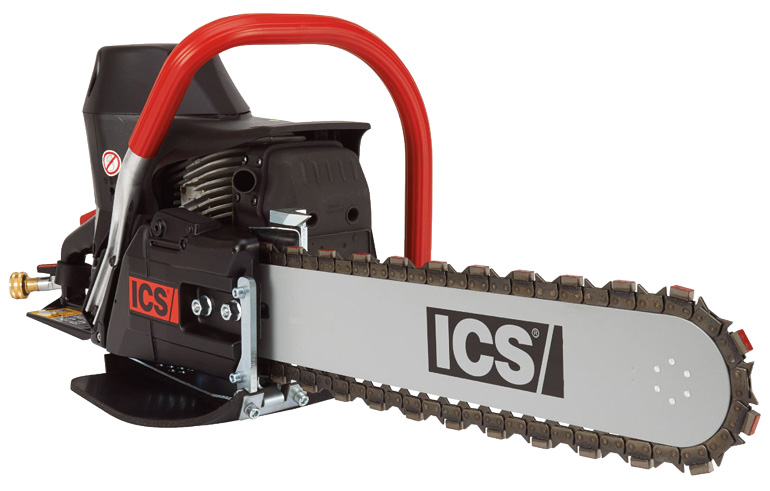

The versatile 680ES
3/8" Pitch or 0.444" Pitch Configuration.
The Power Heads both use these same parts

680ES Parts
click here

680ES Operator's Manual click here

680ES-GC

FORCE3 Chains

3/8" Pitch
Used by general contractors
for cutting concrete

Click here

680ES-PG

PowerGrit Chains

0.444" Pitch
Used by Utility Workers
for cutting Ductile Iron Pipe

Click here

680ES Safety Notifications

READ THE Safety NOTICES from the ICS 680ES Operation Manual. It is each end user's responsibility to utilize the Manufacturer's published information for current changes.

Click here for the ICS Customer Service Page - https://icsdiamondtools.com/customer-service-support/

Technical Specifications of the 680ES

680ES
Datasheet
& Technical Specifications
Click Here

The 680ES is primarily a
3/8" Pitch Concrete Cutting saw designed for designed for General Contractors

680ES PRODUCT SPECIFICATIONS
WEIGHT	21 lbs (9.5 kg) with bar and chain
BAR LENGTH	Up to 14 in (35 cm) -
ENGINE SPEED	11500 +/- 500 rpm, 2800-3200 rpm idle
HORSEPOWER	5 hp (3.7 kW) @ 9500 rpm
TORQUE	36.3 in-lbs @ 6500 rpm
ENGINE TYPE	2-stroke, single cylinder, air cooled
DISPLACEMENT	4.7 cu. inch (76.5 cc)
CHAIN SPEED	5300 fpm (27 m/s), free running
POWERHEAD DIMENSIONS	18 inches (45 cm) Length 11.5 inches (29 cm) Height 10 inches (25 cm) Width
NOISE LEVEL	100 dBA @ 3 ft (1 m)
VIBRATION LEVEL	10.5 meters/second2 (front handle)
WATER SUPPLY	Minimum 20 psi (1.5 bar)
FUEL MIX RATIO	50:1 (4%) fuel-to-oil
FUEL CAPACITY	0.23 gal (.88 liter), 15-18 minutes run time per tank

Chains Tensioning Instructions for ICS 680ES
