QP3TZ
3" Diesel Trash Pumps
3" Suction, Trash Pump, 383 GPM, 90 ft. MAX Head
Use the QP3TZ in many of your basic trash water pump applications. A perfect match of pump performance, weight, and value. The 3-inch (75 mm) trash pump is a standard for contractors and equipment rental operations that desire diesel engine performance. The Subaru-Hatz diesel engine means low fuel consumption and long engine life.
- Power: Rugged 6.8HP Subaru/Hatz 1B30 diesel engine.
- Max solid intake: Pumps water with solid content as large as 1.5-inch (38 mm) in diameter.
- Compact and portable design.
- Maximum Head – 90 ft (27 meters).
- Can pump up to 383 gallons (1,450 liters) per minute.
- Dual 3-inch discharge ports to adapt to different applications.
- Silicon/silicon mechanical seal for durability.
- Large cleanout cover removes in seconds without tools.
- Tubular Steel frame for transportation and pump protection.
- Cast Iron impeller and volute for abrasion resistance/long life.
- Volute has a removable stainless steel wear plate.
- Aluminum body with cast-iron fittings.
Multiquip Diesel Trash Pumps
If You Prefer Diesel Power for Your Trash Pumps
- Multiquip's diesel powered pump line
provide EASY Maintenance / EASY Cover Clean Out design. The models include a durable two-vane impeller that
can be easily removed from the engine shaft, exposing the seal for inspection / replacement.- Power: Powerful Subaru/HATZ 1B30 6.8HP diesel engine.
- Die Cast Aluminum Body: Lightweight, resilient pump body for strength and easy handling.
- Double Volute Design: designed with cast iron materials for efficiency, abrasion resistance, and minimal clogging.
- Mechanical Seal: Silicon/Tungsten Carbon materials for long life and abrasion resistance.
- Seal Sleeve & Pump Shaft: Made from Stainless Steel for corrosion resistance and operating long life.
- Tubular Steel Frame: Rugged 1" diameter steel frame surrounds the pump end and engine for protection
Model |
Pump Size |
Engine Hp |
GPM |
Max. Head |
PSI |
Dimensions L x W x H |
Weight |
QP2TZ |
2" |
1B20 4.6Hp |
198 |
96 Feet |
41.1 |
26.5" x 18.3" x 33.2" |
131 Lbs. |
QP3TZ |
3" |
1B30 |
383 |
90 Feet |
38.9 |
27.8" x 20" x 25" |
142 Lbs. |
QP4TZ |
4" |
1B40 |
526 |
85 Feet |
36.8 |
28.2" x 25.1" x 28.2" |
285 bs. |
MQ62TDD |
6" |
D2011L04i |
1083 |
100 Feet |
43.3 |
56" x 36" x 56" |
1560 Lbs. |
MQ600TD80 |
6" |
D914 |
1600 |
160 Feet |
64.9 |
80" x 39" x 49" |
2200 Lbs. |

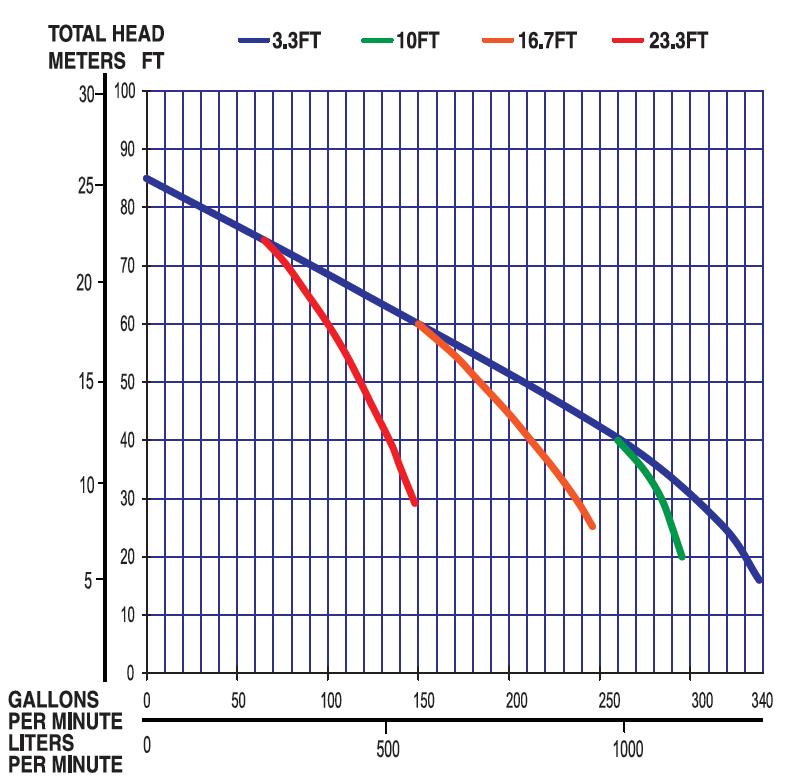

Pump Curve for QP3TZ Diesel Trash Pumps
Multiquip Trash Pumps
