Pump Selection HandbookDiesel Trash Pumps
Multiquip's diesel powered pump line
provide EASY Maintenance & EASY Cover Clean Out design. The models include a durable two-vane impeller that
can be easily removed from the engine shaft, exposing the seal for inspection/replacement.
MQ62TDD Diesel Trash Pumps
Powerful self-priming 6" trash pump capable of providing
65,000 gallons per hour. This pump can be mounted to a convenient skid, or trailers that accommodate a fuel
capacity of 16 or 28 gallons.
MQ600TD80 Diesel Trash Pumps
Multiquip's Model MQ600TD80 Pump
is a high performance self-priming 6" trash pump capable
of moving 96,000 gallons per hour. It's design, power plant and pump-end materials provide exceptional output
and long service life.
The pump comes mounted on a skid, or optional trailer with a 40 gallon fuel capacity
The pump comes mounted on a skid, or optional trailer with a 40 gallon fuel capacity

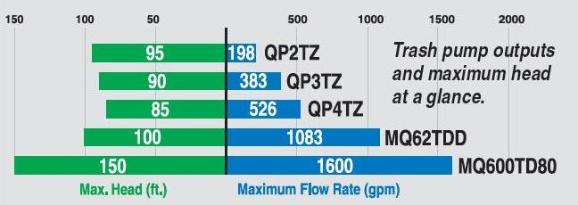

Model |
Pump Size |
Engine Hp |
GPM |
Max. Head |
PSI |
Dimensions L x W x H |
Weight |
QP2TZ |
2" |
1B20 4.8Hp |
198 |
96 Feet |
41.1 |
26.5" x 18.3" x 33.2" |
131 Lbs. |
QP3TZ |
3" |
1B30 |
383 |
90 Feet |
38.9 |
27.8" x 20" x 25" |
142 Lbs. |
QP4TZ |
4" |
1B40 |
526 |
85 Feet |
36.8 |
28.2" x 25.1" x 28.2" |
285 bs. |
MQ62TDD |
6" |
D2011L04i |
1083 |
100 Feet |
43.3 |
56" x 36" x 56" |
1560 Lbs. |
MQ600TD80 |
6" |
D914 |
1600 |
160 Feet |
64.9 |
80" x 39" x 49" |
2200 Lbs. |
Multiquip Trash Pumps
