CC7074D Walk Behind Saws

CC7074D Series
Self-Propelled Saws

CC7074D Series Self Propelled Saws are made to order.
Please call 1-800-882-4959 for price and availability.

CC7074D Series Self Propelled Saws:

Specify Blade Guard Size and Power Source for price and availability quotes.

Model	Power Source		Part Number Speeds	Blade Guard	Weight
CC7074D	Kubota 74Hp Turbo Single Speed	Diesel	5800878	20"	2175
			5800879	26"
			5800880	30"
			5800881	36"
			5800882	42"
			5800883	48"
CC7074DC	Kubota 74Hp Turbo Singe Speed with Clutch	Diesel	5800884	20"	2225
			5800885	26"
			5800886	30"
			5800887	36"
			5800888	42"
			5800889	48"
CC7074D-3	Kubota 74Hp Turbo Three Speed	Diesel	5800891 20" / 26" / 30"	30"	2225
			5800892 20" / 30" / 36"	36"
			5800893 26" / 36" / 42"	42"
			5800894 30" / 42" / 48"	48"

Features and Benefits:

Interim Tier IV Engine
Inline configuration with right andle direct drive gearbox
Available with enhanced clutch assembly: allows the blade to be disengaged while the engine is running
Bladeshaft gearbox: oil bath for low maintenance, keeps drive belts clean
Hydraulic wheel motor drive
Patent pending handle adjustment
Metric fasteners
Water cooled right angle gearbox

Specifications

Maximum depth of cut with a 20" blade	7-1/2" (5" flange)
Maximum depth of cut with a 26" blade	10-1/2" (5" flange)
Maximum depth of cut with a 30" blade	11-3/4" (5" flange)
Maximum depth of cut with a 36" blade	14-3/4" (6" flange)
Maximum depth of cut with a 42" blade	17-1/4" (7" flange)
Maximum depth of cut with a 48" blade	19-3/4" (8" flange)
Blade shaft diameter	2"
Arbor size:	1" with drivepin
Blade shaft drive:	20 V-Belts
Blade mounting	Right or left
Blade raise & lower	Electro-hydraulic pump
Transmission	Eaton Model 10
Drive speed	0-250 feet/minute
Fuel capacity	9 Gallons
Air filter	4 stage

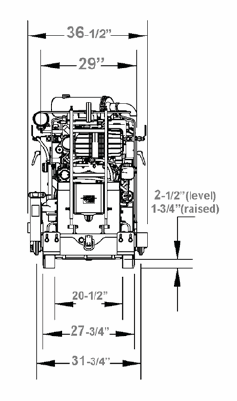

CC7074D Dimensions
