ICS 680GC Common Replacement Parts
Part Number |
Item Name |
Price and Order Button |
70949 |
Rim Sprocket - Gas Saws |
$29.95
|
73336 |
Pre Filter |
$29.95
|
71752 |
Air Filter |
$39.95
|
73935 |
Chain Tensioner |
$29.95
|
528637 |
Starter Cover Assembly |
$139.00
|
505882 |
6-Pack of 2-Cycle Oil |
Call
|
This inexpensive 2-Cycle Gasoline Saw is a great entry-level saw for the occassional concrete cutter.
Built to meet the operational and flexibility demands of the general construction audience, the 680GC stands alone in terms of reliability and value. Packed with innovations and loaded with dependability, the 680GC is the perfect saw for the less frequent user. The distinctive black powerhead houses redesigned carburetion and ignition systems that work together to ensure easy starting, cooler operation, and dependable performance at just about any elevation. Improved airflow design keeps the engine much cooler, extending its life. Available with 12” (30 cm) and 14” (35 cm) guidebars and the entire line of TwinMAX™ diamond chain.
FEATURES & BENEFITS
• Use on concrete, stone and masonry
• Square corners
• Narrow deep cutting up to 14 in.
• Small openings
• 80 cc gas powered engine
• Safe, no gyroscopic rotation
| 680GC PRODUCT SPECIFICATIONS | |
| WEIGHT | 21 lbs (9.5 kg) with bar and chain |
| BAR LENGTH | Up to 14 in (35 cm) |
| ENGINE SPEED | 11500 +/- 500 rpm, 2800-3200 rpm idle |
| HORSEPOWER | 5 hp (3.7 kW) @ 9500 rpm |
| ENGINE TYPE | 2-stroke, single cylinder, air cooled |
| DISPLACEMENT | 4.7 cu. inch (76.5 cc) |
| CHAIN SPEED | 5300 fpm (27 m/s), free running |
| POWERHEAD DIMENSIONS | 18 inches (45 cm) Length 11.5 inches (29 cm) Height 10 inches (25 cm) Width |
| NOISE LEVEL | 100 dBA @ 3 ft (1 m) |
| VIBRATION LEVEL | 10.5 meters/second2 (front handle) |
| WATER SUPPLY | Minimum 20 psi (1.5 bar) |
| FUEL MIX RATIO | 25:1 (4%) fuel-to-oil |
| FUEL CAPACITY | 0.23 gal (.88 liter), 15-18 minutes run time per tank |

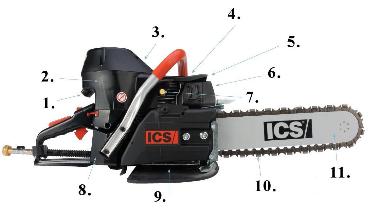

multi - chamber air intake keeps airflow slurry - free. 2. Attitude - friendly carburetion for easy starting and maximum power at any elevation. 3. Polyester filter is designed specifically for wet - cutting. 4. Large diameter (4mm) rope and improved recoil spring engagement guarantee dependable starts. |
 |
|
40% helping to lower engine operating temperature. 6. The sealed SMART Ignition System computerized timing matches spark advance to engine load, which when combined with improved airflow lowers engine temperature by 100 degrees F (40 degrees C). 7. Decompression valve for easy starting. |
tuning easier. 9. Distinctly black housing lets the world know this saw means business. 10. Choose from the entire line of TwinMAX diamond chains to cut through concrete, stone, and masonry. 11. Available with 12" (30cm) and 14" (35cm) guide bars. |
