Diamond Products - CC1000 Green Concrete Saw

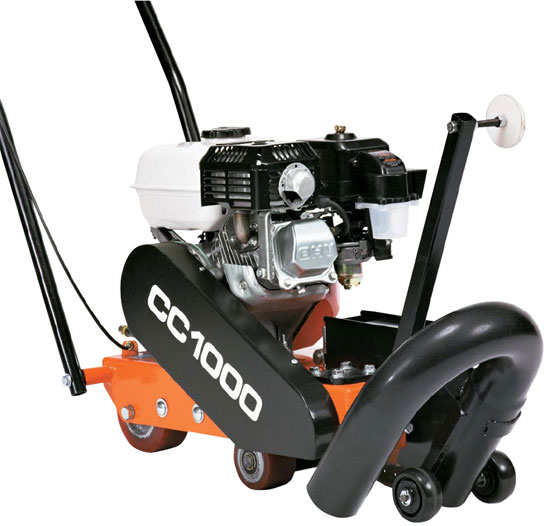

CC1000 Green Concrete Saw

Ultralight and portable, the CC1000 joint cleaning saw is well suited for decorative and green concrete jobs. The push electric or gas CC1000 small specialty saw is also great for up cut sawing and early entry.

  • Center cut design - better tracking into an existing cut and easy to keep the cut straight
  • Light weight and portable
  • Upcut design for a cleaner cut
  • Dust diverter keeps the saw line visible
  • Cyclone air cleaner for increased engine longevity
  • Power transmission to blade drive is via two molded notch 3VX premium belts
  • Adjustable blade alignment
  • Model/Part No.
  • Specifications
  • Dimensions


Model No.
Part No.

Engine Type

Blade
Capacity
Cutting Depth

Cessco Price

Ship
Wt lbs
CC1055H
5800551		 4.8 HP Honda GX160 8"
4-5/8"		 CALL 120
CC1025E
5800552		 2.5 HP Electric 8"
4-5/8"		 CALL 120
Includes skid plate - uses standard 6” diamond blade with 1” arbor.
FREE Ground Shipping - Click here for policy details, and delivery time map.
Maximum Depth of Cut:
2-1/4"
Blade Shaft RPM:
6,100
Blade Shaft Diameter:
1"
Arbor Size:
1" Diameter
Front Wheels:
3" x 2" x 3/4"
Rear Wheels:
5" x 2" x 3/4"
CC1000
A
Saw Height
34-1/2"
B
Min Length, Pointer Up
26-1/2"
C
Max Length, Pointer Down
56"
D
Pointer Extension
18"
E
Frame Width
10"
F
Frame Length
23-1/2"
G
Saw Width
14-1/2"
H
Front Axle Center Length
6-1/2"
I
Rear Axle Center Length
7"
J
Wheel Base Length
11"

Blade Shaft Max Height
4-7/8"

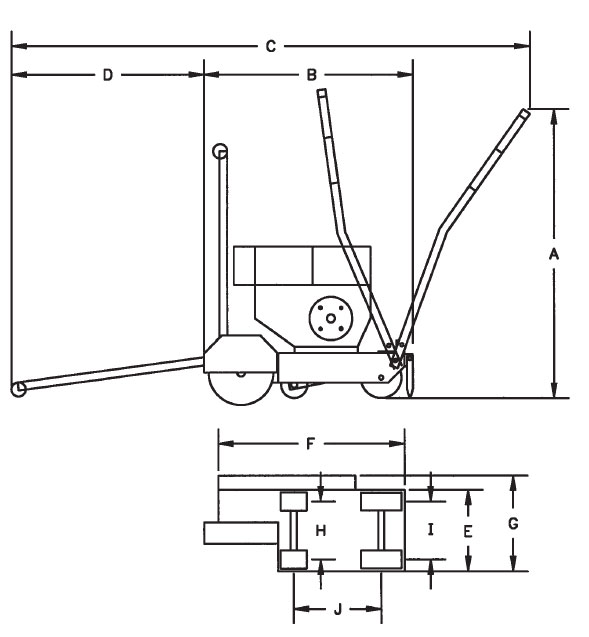

CC1000 Dimensions
