- Model / Part No.
- Specifications
- Dimensions
Model
No.
Part No. |
Engine
Type |
Blade
Capacity
Cutting Depth |
Cessco Price |
Ship
Wt lbs |
CC6560XLS-14
5800750 |
61 HP Deutz Turbo Diesel |
14"
4-5/8" |
Call |
1520 |
CC6560XLS-20
5800751 |
61 HP Deutz Turbo Diesel |
20"
7-5/8" |
Call |
1530 |
CC6560XLS-26
5800752 |
61 HP Deutz Turbo Diesel |
26"
10-5/8" |
Call |
1540 |
CC6560XLS-30
5800753 |
61 HP Deutz Turbo Diesel |
30"
11-3/4" |
Call |
1555 |
CC6560XLS-36
5800754 |
61 HP Deutz Turbo Diesel |
36"
14-3/4" |
Call |
1555 |
All CC6560XLS saws come standard with quick-release bladeshaft/flange, slip-on blade guards, bladeshaft tachometer,
quick-release rear wheels and double concave roller bearings. |
Maximum Depth of Cut: |
14-3/4" |
Blade Shaft Diameter: |
1-3/4" |
Arbor Diameter: |
1" with single drive pin |
Blade Shaft Bearings: |
Self-aligning double concave roller |
Blade Shaft Drive: |
10 belt |
Blade Mounting: |
Right or left |
Blade Raise and Lower: |
Electro-hydraulic pump |
Blade Coolant: |
Dual multi-spray tubes |
Blade Guard Attachment: |
Slip-on through 30", Bolt-on 36" |
Front Wheel Dimensions: |
8" x 3" x 1" |
Rear Wheel Dimensions: |
10" x 3" x 1-1/4" |
Handle Bars: |
Tilt |
Transmission: |
Sundstrand-Sauer or
Eaton Model 10 |
Drive Speed: |
0-200 feet per minute |
Air Filter: |
4 stage |
Fuel Capacity: |
9 gallons |
Electric Start: |
Standard |
High Temperature Shut-Off: |
Gauge and Warning Light |
Low Oil Alert: |
Warning Light |
Hour Meter: |
Standard |
Tachometer: |
Standard |
Amp Meter: |
Warning Light |
Cutting Depth Indicator: |
Standard |
Quick Disconnect Blade Flanges: |
Standard |
Frame Lift: |
Standard |
Quick Release Rear Wheels: |
Standard |
 |

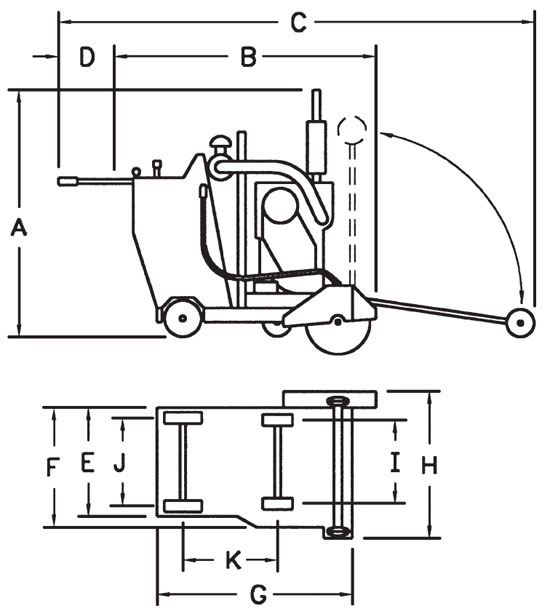

A |
Saw Height |
51" |
B |
Min Length Pointer Up, Handle In |
60" |
C |
Max Length Pointer Down, Handle Out |
124" |
D |
Handle Extension |
24" |
E |
Frame Width (rear) |
27-5/8" |
F |
Frame Width (front) |
31-1/4" |
G |
Frame Length |
49-1/2" |
H |
Saw Width (saw width is reduced by removing blade guard to permit entry through a 36" doorway.) |
37-1/8" |
I |
Front Axle Center Length |
21-3/4" |
J |
Rear Axle Center Length |
24-1/2" |
K |
Wheel Base Length |
23-7/8" |
L |
Blade Shaft Max Height |
19-1/2" |
|
|
