Concrete Slab Saws - CC7200 Deep Cut Saw Series

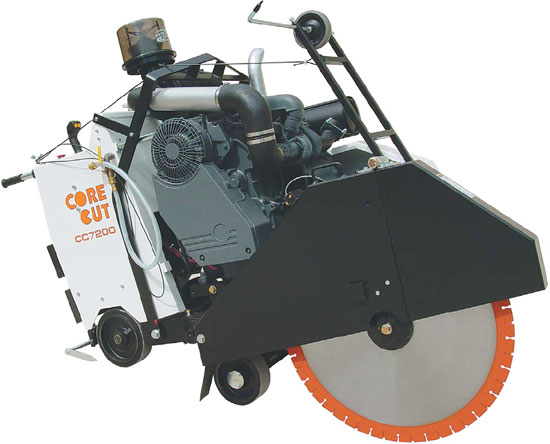

CC7200 Deep Cut
Concrete Saw

78 HP turbo charged diesel engine or 50 HP electric
22-3/4” cutting depth with a 54” blade guard
Jackshaft design for high torque, lower RPM requirements in deep sawing with large diameter
blades
Forward-positioned motor for more weight at the blade and less on the operator
Heavy duty reinforced single piece frame designed for deep sawing

Model No. Part No.	Engine Type	Blade Capacity Cutting Depth	Cessco Price	Ship Wt lbs
CC7272-10-26 5800176	78 HP Deutz Turbo Diesel	26" 9-3/4"	Call	2250
CC7272-10-30 5800177	78 HP Deutz Turbo Diesel	30" 11-3/4"	Call	2260
CC7272-10-36 5800178	78 HP Deutz Turbo Diesel	36" 14-3/4"	Call	2270
CC7272-10-42 5800179	78 HP Deutz Turbo Diesel	42" 16-3/4"	Call	2290
CC7272-10-48 5800180	78 HP Deutz Turbo Diesel	48" 19-3/4"	Call	2310
CC7272-10-54 5800181	78 HP Deutz Turbo Diesel	54" 22-3/4"	Call	2325
CC7250E-10-26 5800286	50 HP Baldor Electric (460V)	26" 9-3/4"	Call	1885
CC7250E-10-30 5800287	50 HP Baldor Electric (460V)	30" 11-3/4"	Call	1895
CC7250E-10-36 5800288	50 HP Baldor Electric (460V)	36" 14-3/4"	Call	1905
CC7250E-10-42 5800289	50 HP Baldor Electric (460V)	42" 16-3/4"	Call	1925
CC7250E-10-48 5800290	50 HP Baldor Electric (460V)	48" 19-3/4"	Call	1945
CC7250E-10-54 5800291A	50 HP Baldor Electric (460V)	54" 22-3/4"	Call	1960
CC7250E-10-54 5800291B	50 HP Baldor Electric (575V)	54" 22-3/4"	Call	1960
All CC7200 saws come standard with shaft tachometer, quick-release bladeshaft/flange, blade guard, quick-release rear wheels and double concave roller bearings * Includes motor starter switch box.

Maximum Depth of Cut:	22-3/4"
Blade Shaft Diameter:	1-3/4"
Arbor Diameter:	1" with Single Drive Pin
Blade Shaft Bearings:	Self-aligning double concave roller
Blade Shaft Drive:	16 Belt Jackshaft, 10 Belt Engine
Blade Mounting:	Right or Left
Blade Raise and Lower:	Electro-hydraulic pump
Blade Coolant:	Dual multi-spray tubes
Blade Guard Attachment:	Slip-on through 30" guard, Bolt-on 36" and up
Front Wheel Dimensions:	8" x 3" x 1"
Rear Wheel Dimensions:	10" x 3" x 1-1/4"
Handle Bars:	Tilt
Transmission:	Eaton Model 10
Drive Speed:	0-200 feet per minute
Air Filter:	4 stage
Fuel Capacity:	9 gallons
Electric Start:	Standard
High Temperature Shut-Off:	Gauge and warning light alerts operator
Low Oil Alert:	Warning light alerts operator
Hour Meter:	Standard
Tachometer:	Standard
Amp Meter:	Warning light alerts operator
Cutting Depth Indicator:	Standard
Quick Disconnect Blade Flanges:	Standard
Quick Release Rear Wheels:	Standard

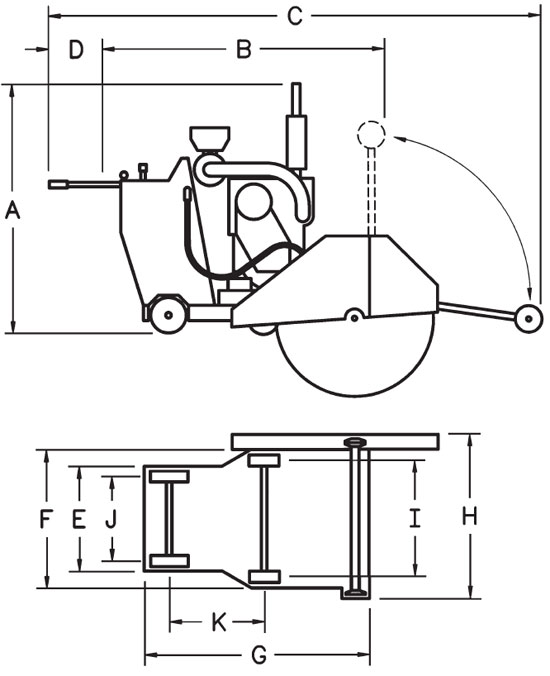

A	Saw Height	63"
B	Min Length Pointer Up, Handle In	70"
C	Max Length Pointer Down, Handle Out	135"
D	Handle Extension	24"
E	Frame Width (Rear)	27-5/8"
F	Frame Width (Front)	37"
G	Frame Length	60"
H	Saw Width	43-1/4"
I	Front Axle Center Length	31"
J	Rear Axle Center Length	24-1/2"
K	Wheel Base Length	25-3/8"
L	Blade Shaft Max Height	28-1/2"
