- Model / Part No.
- Specifications
- Dimensions
Model
No.
Part No. |
Engine
Type |
Blade
Capacity
Cutting Depth |
Cessco Price |
Ship
Wt lbs |
CC7172-10-14
5800220 |
78 HP Deutz Turbo Diesel |
14"
4-1/2" |
Call |
1915 |
CC7172-10-20
5800221 |
78 HP Deutz Turbo Diesel |
20"
7-1/2" |
Call |
1925 |
CC7172-10-26
5800222 |
78 HP Deutz Turbo Diesel |
26"
10-1/4" |
Call |
1935 |
CC7172-10-30
5800223 |
78 HP Deutz Turbo Diesel |
30"
11-3/4" |
Call |
1945 |
CC7172-10-36
5800224 |
78 HP Deutz Turbo Diesel |
36"
14-3/4" |
Call |
1955 |
CC7172-10-42
5800225 |
78 HP Deutz Turbo Diesel |
42"
16-3/4" |
Call |
1975 |

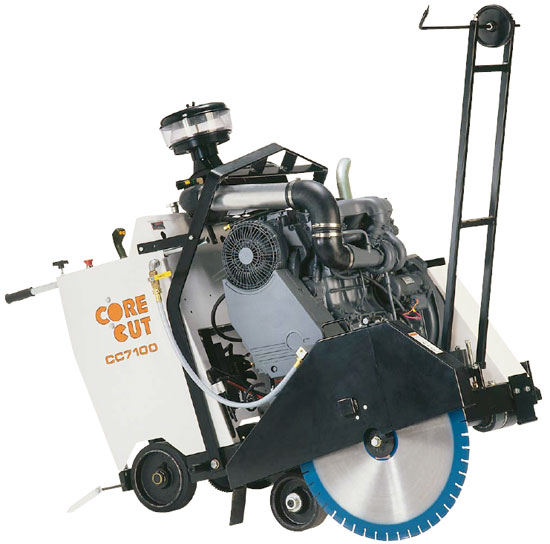

All CC7100 saws come standard with shaft tachometer, quick-release bladeshaft/flange, slip-on blade guards, quick-release
rear wheels and double concave roller bearings. |
Maximum Depth of Cut: |
16-3/4" |
Blade Shaft Diameter: |
1-3/4" |
Arbor Diameter: |
1" with single drive pin |
Blade Shaft Bearings: |
Self-aligning
double concave roller |
Blade Shaft Drive: |
10 Belt |
Blade Mounting: |
Right or left |
Blade Raise and Lower: |
Electro-hydraulic pump |
Blade Coolant: |
Dual multi-spray tubes |
Blade Guard Attachment: |
Slip-on through 30" guard,
Bolt on 36" and 42" |
Front Wheel Dimensions: |
8" x 3" x 1" |
Rear Wheel Dimensions: |
10" x 3" x 1-1/4" |
Handle Bars: |
Tilt |
Transmission: |
Eaton Model 10 |
Drive Speed: |
0-200 feet per minute |
Air Filter: |
4 stage |
Fuel Capacity: |
9 gallons |
Electric Start: |
Standard |
High Temperature Shut-Off: |
Gauge and warning light
alerts operator |
Low Oil Alert: |
Warning light alerts operator |
Hour Meter: |
Standard |
Tachometer: |
Standard |
Amp Meter: |
Warning light alerts operator |
Cutting Depth Indicator: |
Standard |
Quick Disconnect Blade Flanges: |
Standard |
Frame Lift: |
Standard |
Quick Release Rear Wheels: |
Standard |
Telescoping Front Pointer: |
Standard |
 |

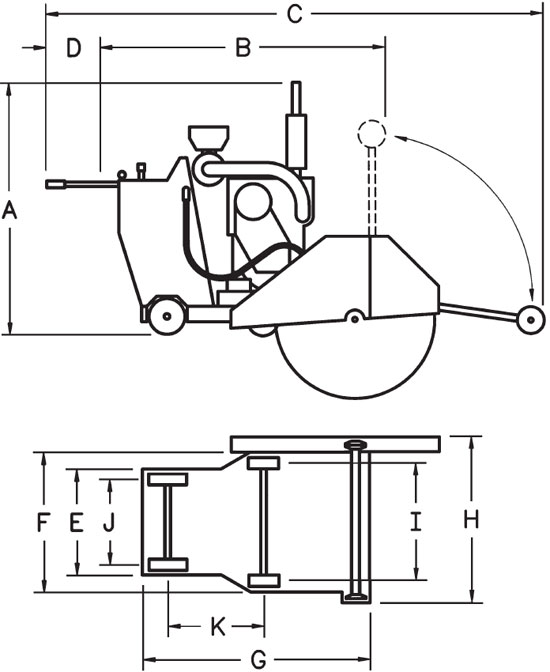

| A |
Saw Height |
63" |
| B |
Min Length Pointer Up, Handle In |
61" |
| C |
Max Length Pointer Down, Handle Out |
126" |
| D |
Handle Extension |
24" |
| E |
Frame Width (Rear) |
27-5/8" |
| F |
Frame Width (Front) |
37" |
| G |
Frame Length |
51" |
| H |
Saw Width |
43-1/4" |
| I |
Front Axle Center Length |
31" |
| J |
Rear Axle Center Length |
24-1/2" |
| K |
Wheel Base Length |
23-7/8" |
| L |
Blade Shaft Max Height |
22-1/2" |
|
|
