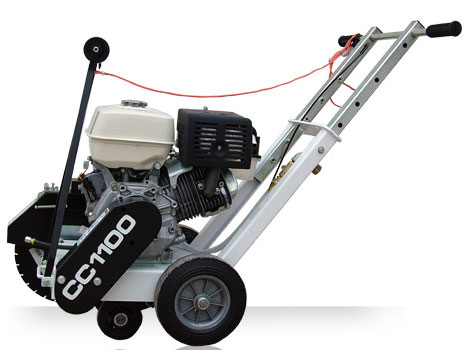

Diamond Products - CC1100 Push Concrete Saw

CC1100 Push Concrete Saw

  • Push concrete saw with
    piston raise/lower system.

    The CC1100 mini saw's heavy duty design is capable of up or down cutting with it's large rear wheels.
  • Small size makes it suitable for green cutting, early entry and great for small jobs,
  • Models/Part No.
  • Specifications
  • Dimensions

Model No.
Part No.

Engine Type

Blade
Capacity
Cutting Depth

Cessco Price

 Ship
Wt lbs
CC1113H-XL-14
5801015		 11 HP Honda Downcut GX390 14"
4-5/8"		 CALL 212
CC1113HU-XL-14
5801020		 11 HP Honda Upcut GX390 14"
4-5/8"		 CALL 212
FREE Ground Shipping - Click here for policy details, and delivery time map.
11 HP Honda GX-390 Engine

Can be used as an up-cut or down-cut saw

Blade capacity
14"
Heavy duty handles

RPM at the blade shaft
2,650
Left or right side sawing

Cutting depth
4-5/8"
Diamond Products - CC1100 Push Concrete Saw - Large view
A
 Saw Height
40-3/4"
B
 Minimum Length, Pointer up, Handle down
36"
C
 Maximum Length, Pointer down, Handle up
68"
D
 Handle Extension
10"
E
 Frame Width
19-1/2"
F
 Frame Length
16-5/8"
G
 Saw Width
19-1/2"
H
 Front Track
9-1/8"
I
 Rear Track
18-1/4"
J
 Wheel Base Length
8-1/2"
