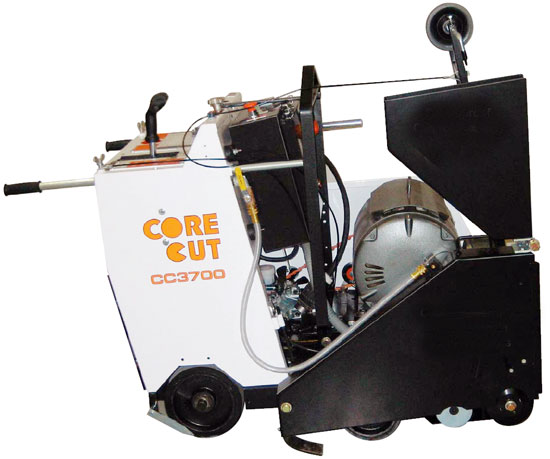

CC3700TE Dual Shaft Electric Concrete Saw

CC3700TE Dual Shaft
Concrete
Walk Behind Saw

Electric models. Most compact high-powered saw on the market - Fits through a 30" door!

Model No. Part No.	Engine Type	Blade Capacity Cutting Depth	Cessco Price	Ship Wt lbs
CC3730TE-20 5800671A	30 HP Lincoln Electric (460 V)	20" 7-5/8"	Call	1370
CC3730TE-26 5800673A	30 HP Lincoln Electric (460 V)	26" 10-5/8"	Call	1445
CC3730TE-30 5800675A	30 HP Lincoln Electric (460 V)	30" 11-3/4"	Call	1455
CC3730TE-36 5800677A	30 HP Lincoln Electric (460 V)	36" 14-3/4"	Call	1365
CC3740TE-20 5800681A	40 HP Lincoln Electric (460 V)	20" 7-5/8"	Call	1445
CC3740TE-26 5800683A	40 HP Lincoln Electric (460 V)	26" 10-5/8"	Call	1455
CC3740TE-30 5800685A	40 HP Lincoln Electric (460 V)	30" 11-3/4"	Call	1465
CC3740TE-36 5800687A	40 HP Lincoln Electric (460 V)	36" 14-3/4"	Call	1475
CC3730TE-20 5800671B	30 HP Lincoln Electric (575 V)	20" 7-5/8"	Call	1445
CC3730TE-26 5800673B	30 HP Lincoln Electric (575 V)	26" 10-5/8"	Call	1445
CC3730TE-30 5800675B	30 HP Lincoln Electric (575 V)	30" 11-3/4"	Call	1455
CC3730TE-36 5800677B	30 HP Lincoln Electric (575 V)	36" 14-3/4"	Call	1365
CC3740TE-20 5800681B	40 HP Lincoln Electric (575 V)	20" 7-5/8"	Call	1445
CC3740TE-26 5800683B	40 HP Lincoln Electric (575 V)	26" 10-5/8"	Call	1455
CC3740TE-30 5800685B	40 HP Lincoln Electric (575 V)	30" 11-3/4"	Call	1365
CC3740TE-36 5800687B	40 HP Lincoln Electric (575 V)	36" 14-3/4"	Call	1475

Maximum Depth of Cut:	14-3/4"
Blade Shaft Diameter:	1-3/4"
Arbor Diameter: with single drive pin	1"
Blade Shaft Bearings:	Self-aligning double concave roller
Blade Shaft Drive:	6 or 8 Belt
Blade Mounting:	Right or left
Blade Raise and Lower:	Electro-hydraulic pump
Blade Coolant:	Dual multi-spray tubes
Blade Guard Attachment:	Slip-on though 30", Bolt-on 36"
Front Wheel Dimensions:	8" x 3" x 1"
Rear Wheel Dimensions:	10" x 3" x 1-1/4"
Handle Bars:	Tilt
Transmission:	Sundstrand-Sauer or Eaton Model 10
Drive Speed:	0-200 feet per minute
Electric Starter Box:	Standard
Hour Meter:	Standard
Amp Meter:	Standard
Cutting Depth Indicator:	Standard
Quick Disconnect Blade Flanges:	Standard
Frame Lift:	Standard
Quick Release Rear Wheels:	Standard
Free Wheeling Clutch:	Standard
Telescoping Front Pointer:	Standard

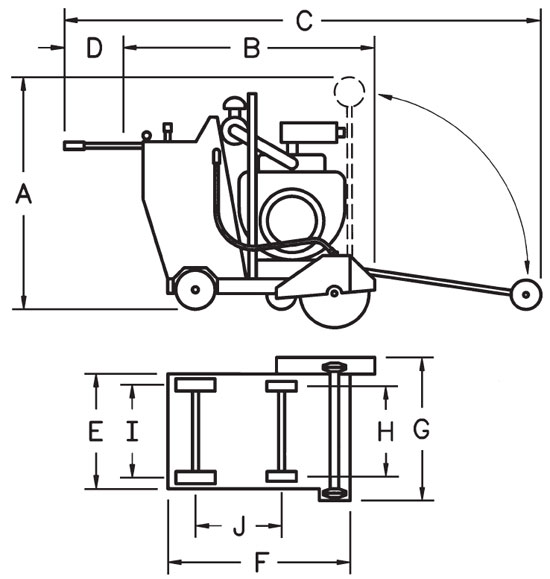

A	Saw Height	49"
B	Min length Pointer Up, Handle Down	59"
C	Max length Pointer Down, Handle Up	116"
D	Handle Extension	24"
E	Frame Width	25-3/4"
F	Frame Length	46"
G	Saw Width	32-1/4"
H	Front Axle Center Length	19-7/8"
I	Rear Axle Center Length	22-5/8"
J	Wheel Base Length	21-3/8"
	Blade Shaft Max Height	16-1/2"
