Concrete Slab Saws - CC7074 In-Line Series

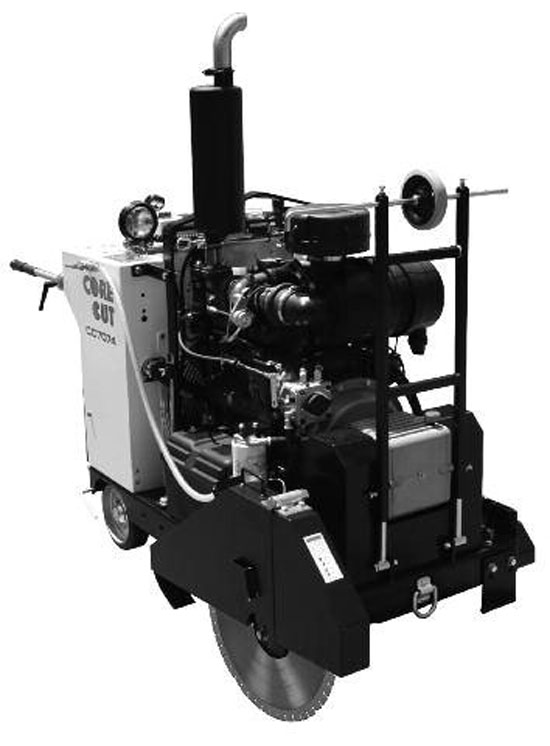

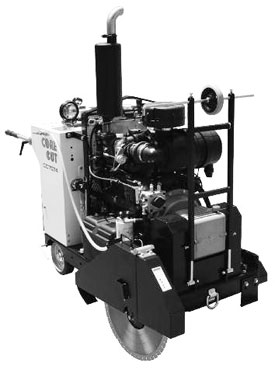

CC7074D In-Line
Concrete Saw

Inline configuration with right angle direct drive gearbox
Water cooled right angle gearbox
Bladeshaft gearbox:
- Oil Bath for low maintenance
- Allows for more ground clearance - deeper cuts
- Keeps drive belts out of the slurry
Pulls a 48” blade out of the cut
Extra heavy-duty lift pump
Hydraulic wheel motor drive
Patent pending automatic water shut-off:
- Conserves water
- Eases operation
Patent pending automatic handle adjustment

Model No. Part No.	Engine Type	Blade Capacity Cutting Depth	Cessco Price	Ship Wt lbs
CC7074D-20 5800820	74 HP Kubota Turbo Diesel	20" 7-5/8"	Call	1915
CC7074D-26 5800821	74 HP Kubota Turbo Diesel	26" 10-5/8"	Call	1925
CC7074D-30 5800822	74 HP Kubota Turbo Diesel	30" 11-3/4"	Call	1935
CC7074D-36 5800823	74 HP Kubota Turbo Diesel	36" 14-3/4"	Call	1945
CC7074D-42 5800824	74 HP Kubota Turbo Diesel	42" 17-3/4"	Call	1955
CC7074D-48 5800825	74 HP Kubota Turbo Diesel	48" 19-3/4"	Call	1975
CC7074D-20 5800830	74 HP Kubota Turbo Diesel w/Clutch	20" 7-5/8"	Call	1915
CC7074D-26 5800831	74 HP Kubota Turbo Diesel w/Clutch	26" 10-5/8"	Call	1925
CC7074D-30 5800832	74 HP Kubota Turbo Diesel w/Clutch	30" 11-3/4"	Call	1935
CC7074D-36 5800833	74 HP Kubota Turbo Diesel w/Clutch	36" 14-3/4"	Call	1945
CC7074D-42 5800834	74 HP Kubota Turbo Diesel w/Clutch	42" 17-3/4"	Call	1955
CC7074D-48 5800835	74 HP Kubota Turbo Diesel w/Clutch	48" 19-3/4"	Call	1975

Maximum Depth of Cut:	14-3/4"
Blade Shaft Diameter:	1-3/4"
Arbor Diameter:	1" with single drive pin
Blade Shaft Bearings:	Self-aligning double concave roller
Blade Shaft Drive:	10 belt
Blade Mounting:	Right or left
Blade Raise and Lower:	Electro-hydraulic pump
Blade Coolant:	Dual multi-spray tubes
Blade Guard Attachment:	Slip-on through 30", Bolt-on 36"
Front Wheel Dimensions:	8" x 3" x 1"
Rear Wheel Dimensions:	10" x 3" x 1-1/4"
Handle Bars:	Tilt
Transmission:	Sundstrand-Sauer or Eaton Model 10
Drive Speed:	0-200 feet per minute
Air Filter:	4 stage
Fuel Capacity:	9 gallons
Electric Start:	Standard
High Temperature Shut-Off:	Gauge and Warning Light
Low Oil Alert:	Warning Light
Hour Meter:	Standard
Tachometer:	Standard
Amp Meter:	Warning Light
Cutting Depth Indicator:	Standard
Quick Disconnect Blade Flanges:	Standard
Frame Lift:	Standard
Quick Release Rear Wheels:	Standard

A	Saw Height	51"
B	Min Length Pointer Up, Handle In	61"
C	Max Length Pointer Down, Handle Out	125"
D	Handle Extension	24"
E	Frame Width (rear)	27-5/8"
F	Frame Width (front)	31-1/4"
G	Frame Length	50-3/4"
H	Saw Width *	37-1/8"
I	Front Axle Center Length	21-3/4"
J	Rear Axle Center Length	24-1/2"
K	Wheel Base Length	23-7/8"
L	Blade Shaft Max Height	22-1/2"
