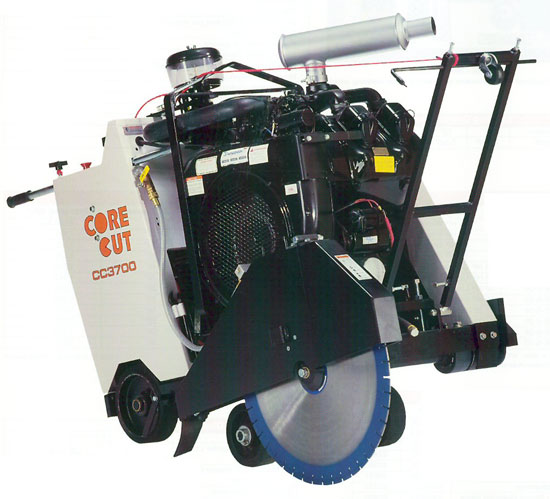

Large Concrete Slab Saws - CC3700 Walk Behind Concrete Saw

Diamond Products - CC3700 Concrete Saw - Compact 65 HP Saw

CC3700 Concrete
Walk Behind Saw

Diesel and electric models. Most compact high-powered saw on the market - Fits through a 30" door!

Model/Part No.
Specifications
Dimensions

Model No. Part No.	Engine Type	Blade Capacity Cutting Depth	Cessco Price	Ship Wt lbs
CC3728-6-14 5800440	30 HP Deutz Diesel	14" 4-5/8"	Call	1400
CC3728-6-20 5800441	30 HP Deutz Diesel	20" 7-5/8"	Call	1410
CC3728-6-26 5800442	30 HP Deutz Diesel	26" 10-5/8"	Call	1420
CC3728-6-30 5800443	30 HP Deutz Diesel	30" 11-3/4"	Call	1430
CC3728-6-36 5800444	30 HP Deutz Diesel	36" 14-3/4"	Call	1440
CC3740E-8-20 5800436A	40 HP Lincoln Electric (460 V)	20" 7-5/8"	Call	1435
CC3740E-8-26 5800436A	40 HP Lincoln Electric (460 V)	26" 10-5/8"	Call	1445
CC3740E-8-30 5800436A	40 HP Lincoln Electric (460 V)	30" 11-3/4"	Call	1455
CC3740E-8-36 5800436A	40 HP Lincoln Electric (460 V)	36" 14-3/4"	Call	1465
CC3730E-6-14 5800381A	30 HP Lincoln Electric (460 V)	14" 4-5/8"	Call	1350
CC3730E-6-20 5800382A	30 HP Lincoln Electric (460 V)	20" 7-5/8"	Call	1360
CC3730E-6-26 5800383A	30 HP Lincoln Electric (460 V)	26" 10-5/8"	Call	1370
CC3730E-6-30 5800384A	30 HP Lincoln Electric (460 V)	30" 11-3/4"	Call	1380
CC3730E-6-36 5800385A	30 HP Lincoln Electric (460 V)	36" 14-3/4"	Call	1390
CC3725E-6-14 5800445A	25 HP Leeson Electric *(230 V)	14" 4-5/8"	Call	1385
CC3725E-6-14 5800445B	25 HP Leeson Electric *(460 V)	14" 4-5/8"	Call	1385
CC3725E-6-14 5800445C	25 HP Leeson Electric *(575 V)	14" 4-5/8"	Call	1385
CC3725E-6-20 5800446A	25 HP Leeson Electric *(230 V)	20" 7-5/8"	Call	1395
CC3725E-6-20 5800446B	25 HP Leeson Electric *(460 V)	20" 7-5/8"	Call	1395
CC3725E-6-20 5800446C	25 HP Leeson Electric *(575 V)	20" 7-5/8"	Call	1395
CC3725E-6-26 5800447A	25 HP Leeson Electric *(230 V)	26" 10-5/8"	Call	1405
CC3725E-6-26 5800447B	25 HP Leeson Electric *(460 V)	26" 10-5/8"	Call	1405
CC3725E-6-26 5800447C	25 HP Leeson Electric *(575 V)	26" 10-5/8"	Call	1405
CC3725E-6-30 5800448A	25 HP Leeson Electric *(230 V)	30" 11-3/4"	Call	1415
CC3725E-6-30 5800448B	25 HP Leeson Electric *(460 V)	30" 11-3/4"	Call	1415
CC3725E-6-30 5800448C	25 HP Leeson Electric *(575 V)	30" 11-3/4"	Call	1415
CC3725E-6-36 5800449A	25 HP Leeson Electric *(230 V)	36" 14-3/4"	Call	1425
CC3725E-6-36 5800449B	25 HP Leeson Electric *(460 V)	36" 14-3/4"	Call	1425
CC3725E-6-36 5800449C	25 HP Leeson Electric *(575 V)	36" 14-3/4"	Call	1425
*Motor starter switch box included.

Maximum Depth of Cut:	14-3/4"
Blade Shaft Diameter:	1-3/4"
Arbor Diameter: with single drive pin	1"
Blade Shaft Bearings:	Self-aligning double concave roller
Blade Shaft Drive:	6 or 8 Belt
Blade Mounting:	Right or left
Blade Raise and Lower:	Electro-hydraulic pump
Blade Coolant:	Dual multi-spray tubes
Blade Guard Attachment:	Slip-on though 30", Bolt-on 36"
Front Wheel Dimensions:	8" x 3" x 1"
Rear Wheel Dimensions:	10" x 3" x 1-1/4"
Handle Bars:	Tilt
Transmission:	Sundstrand-Sauer or Eaton Model 10
Drive Speed:	0-200 feet per minute
Electric Starter Box:	Standard
Hour Meter:	Standard
Amp Meter:	Standard
Cutting Depth Indicator:	Standard
Quick Disconnect Blade Flanges:	Standard
Frame Lift:	Standard
Quick Release Rear Wheels:	Standard
Free Wheeling Clutch:	Standard
Telescoping Front Pointer:	Standard

A	Saw Height	49"
B	Min length Pointer Up, Handle Down	59"
C	Max length Pointer Down, Handle Up	116"
D	Handle Extension	24"
E	Frame Width	25-3/4"
F	Frame Length	46"
G	Saw Width	32-1/4"
H	Front Axle Center Length	19-7/8"
I	Rear Axle Center Length	22-5/8"
J	Wheel Base Length	21-3/8"
	Blade Shaft Max Height	16-1/2"
