Large Concrete Slab Saws - CC3500 Concrete Saw

Diamond Products - CC3500 Concrete Saw - Large Service Saw

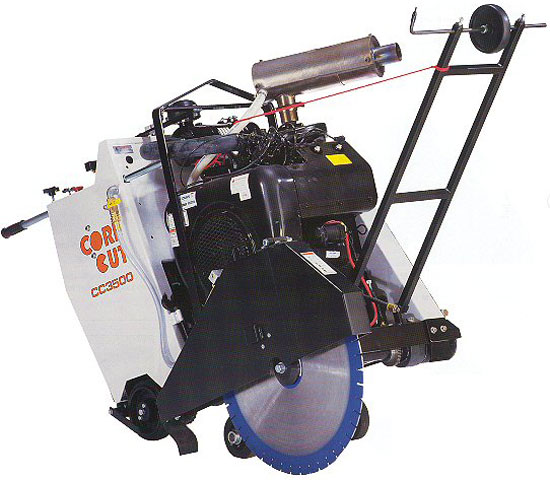

CC3500 Concrete
Walk Behind Saw

The CC3500 utilizes many of the same heavy-duty components used on our bigger saws.

Ideal for municipalities
and rental stores
Fits through a 30” door
Choice of 14” through 30”
blade guards
Maximum cutting depth of
12-3/8” with 30” guard
Strongest frame on the market
Gas or electric motors available

Model/Part No.
Specifications
Dimensions

Model No. Part No.	Engine Type	Blade Capacity Cutting Depth	Cessco Price	Ship Wt lbs
CC3535F-14 5801022	35 HP Wisconsin (fuel injected)	14" 4-3/8"	Call	1160
CC3535F-20 5801018	35 HP Wisconsin (fuel injected)	20" 7-3/8"	Call	1170
CC3535F-26 5801023	35 HP Wisconsin (fuel injected)	26" 10-3/8"	Call	1180
CC3535F-30 5801024	35 HP Wisconsin (fuel injected)	30" 12-3/8"	Call	1190
CC3540JK-14 5801301	40 HP Kohler Command	14" 4-3/8"	Call	1020
CC3540JK-20 5801302	40 HP Kohler Command	20" 7-3/8"	Call	1030
CC3540JK-26 5801303	40 HP Kohler Command	26" 10-3/8"	Call	1040
CC3540JK-30 5801304	40 HP Kohler Command	30" 12-3/8"	Call	1050
CC3540JBV-14 5801305	35 HP Briggs and Stratton Vanguard	14" 4-3/8"	Call	1020
CC3540JBV-20 5801306	35 HP Briggs and Stratton Vanguard	20" 7-3/8"	Call	1030
CC3540JBV-26 5801307	35 HP Briggs and Stratton Vanguard	26" 10-3/8"	Call	1040
CC3540JBV-30 5801308	35 HP Briggs and Stratton Vanguard	30" 12-3/8"	Call	1050
CC3530E-14 5800788	30 HP Lincoln Electric (460 V)	14" 4-3/8"	Call	1105
CC3530E-20 5800789	30 HP Lincoln Electric (460 V)	20" 7-3/8"	Call	1115
CC3530E-26 5800790	30 HP Lincoln Electric (460 V)	26" 10-3/8"	Call	1125
CC3530E-30 5800791	30 HP Lincoln Electric (460 V)	30" 12-3/8"	Call	1135
CC3520E-14 5800784A	20 HP Baldor Electric 230 V	14" 4-3/8"	Call	1075
CC3520E-14 5800784B	20 HP Baldor Electric 460 V	14" 4-3/8"	Call	1075
CC3520E-14 5800784C	20 HP Baldor Electric 575 V	14" 4-3/8"	Call	1075
CC3520E-20 5800785A	20 HP Baldor Electric 230 V	20" 7-3/8"	Call	1085
CC3520E-20 5800785B	20 HP Baldor Electric 460 V	20" 7-3/8"	Call	1085
CC3520E-20 5800785C	20 HP Baldor Electric 575 V	20" 7-3/8"	Call	1085
CC3520E-26 5800786A	20 HP Baldor Electric 230 V	26" 10-3/8"	Call	1095
CC3520E-26 5800786B	20 HP Baldor Electric 460 V	26" 10-3/8"	Call	1095
CC3520E-26 5800786C	20 HP Baldor Electric 575 V	26" 10-3/8"	Call	1095
CC3520E-30 5800787A	20 HP Baldor Electric 230 V	30" 12-3/8"	Call	1105
CC3520E-30 5800787B	20 HP Baldor Electric 460 V	30" 12-3/8"	Call	1105
CC3520E-30 5800787C	20 HP Baldor Electric 575 V	30" 12-3/8"	Call	1105

Maximum Depth of Cut:	12-3/8"
Blade Shaft Diameter:	1-3/4"
Arbor Diameter: with single drive pin	1"
Blade Shaft Bearings:	Self-aligning double concave roller
Blade Shaft Drive:	6 belt
Blade Mounting:	Right or left
Blade Raise and Lower:	Electro-hydraulic pump
Blade Coolant:	Dual multi-spray tubes
Blade Guard Attachment:	Slip-on
Front Wheel Dimensions:	6" x 2" x 1"
Rear Wheel Dimensions:	8" x 2-1/2" x 1-1/4"
Handle Bars:	Tilt
Transmission:	Sundstrand-Sauer
Drive Speed:	0-200 feet per minute
Air Filter:	4 stage
Fuel Capacity:	6 gallons
Electric Start:	Standard
High Temperature Shut-Off:	Standard
Hour Meter:	Standard
Tachometer:	Optional
Amp Meter:	Standard
Cutting Depth Indicator:	Standard
Quick Disconnect Blade Flanges:	Standard
Frame Lift:	Standard
Telescoping Front Pointer:	Standard

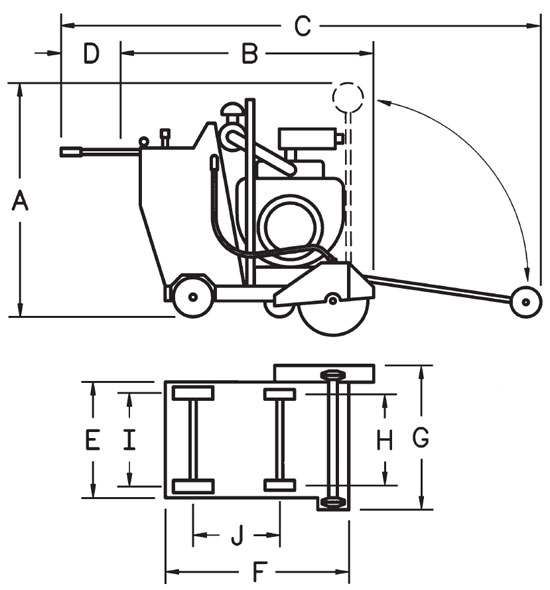

A	Saw Height	47-1/4"
B	Min length Pointer Up, Handle Down	55-1/2"
C	Max length Pointer Down, Handle Up	112"
D	Handle Extension	24"
E	Frame Width	23-3/8"
F	Frame Length	39-1/2"
G	Saw Width	29-7/8"
H	Front Axle Center Length	18-1/2"
I	Rear Axle Center Length	20-3/4"
J	Wheel Base Length	18-1/4"
	Blade Shaft Max Height	16-1/2"
