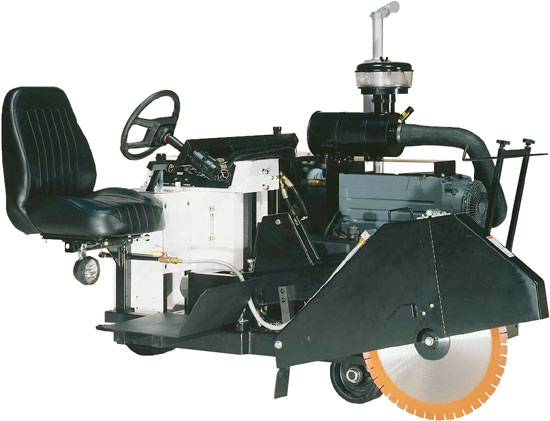

CC8000 Rider
Concrete Saw
The CC8000 Rider Concrete Saw patented design of this ride on concrete saw delivers maximum flexibility, excellent for micro-trenching.
- 74 HP Deutz diesel standard with isolators to reduce vibration
- 22-3/4" maximum cutting depth
- Hydraulic-driven blade shaft delivers an infinitely variable RPM with no horsepower loss for 14" to 54" blade diameters
- Zero turn radius with power steering
- Arm can be rotated to enter cut at up to a 10 degree angle
- No belts to tighten or replace
- Converts from a downcut to an upcut saw in less than a minute
|
- Model / Part No.
- Specifications
- Dimensions
Model
No.
Part No. |
Engine
Type |
Blade
Capacity
Cutting Depth |
Cessco Price |
Ship
Wt lbs |
CC8072-14
5800415 |
74 HP Deutz Turbo Diesel |
14"
3-3/4" |
Call |
2870 |
CC8072-20
5800416 |
74 HP Deutz Turbo Diesel |
20"
6-3/4" |
Call |
2880 |
CC8072-26
5800417 |
74 HP Deutz Turbo Diesel |
26"
9-3/4" |
Call |
2890 |
CC8072-30
5800418 |
74 HP Deutz Turbo Diesel |
30"
11-3/4" |
Call |
2900 |
CC8072-36
5800419 |
74 HP Deutz Turbo Diesel |
36"
14-3/4" |
Call |
2920 |
CC8072-42
5800420 |
74 HP Deutz Turbo Diesel |
42"
16-3/4" |
Call |
2930 |
CC8072-48
5800421 |
74 HP Deutz Turbo Diesel |
48"
19-3/4" |
Call |
2940 |
CC8072-54
5800422 |
74 HP Deutz Turbo Diesel |
54"
22-3/4" |
Call |
2950 |
Maximum Depth of Cut: |
22-3/4" |
Blade Guard Capacity: |
54" |
Blade Shaft Diameter: |
2-1/2" |
Arbor Diameter: |
1" with single drive pin |
Blade Shaft Bearings: |
Precision ball |
Blade Shaft Drive: |
Hydraulic motor |
Blade Mounting: |
Right |
Blade Raise and Lower: |
Hydraulic pump,
solenoid valve controlled |
Blade Coolant: |
Dual multi-spray tubes |
Blade Guard Attachment: |
Slip-on through 30",
Bolt-on 36" and up |
Front Wheel Dimensions: |
10" x 4" x 1-1/4" |
Rear Wheel Dimensions: |
12" x 6-1/2" x 1" |
Transmission: |
Variable displacement
hydraulic pump and motor |
Drive System: |
Direct/hydraulic |
Air Filter: |
4 stage |
Fuel Capacity: |
9 gallons |
Electric Start: |
Standard |
High Temperature Shut-Off: |
Gauge/Light |
Low Oil Alert: |
Warning Light |
Hour Meter: |
Standard |
Tachometer: |
Standard |
Amp Meter: |
Warning light |
Adjustable Depth Stop: |
Standard |
Blade Shaft Wrench: |
Standard |
Quick Disconnect Blade Flanges: |
Standard |
Hydraulic Oil Capacity: |
17 gallons |
Telescoping Front Pointer: |
Standard |
 |

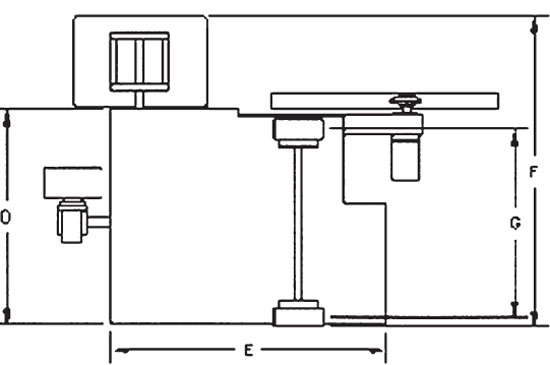

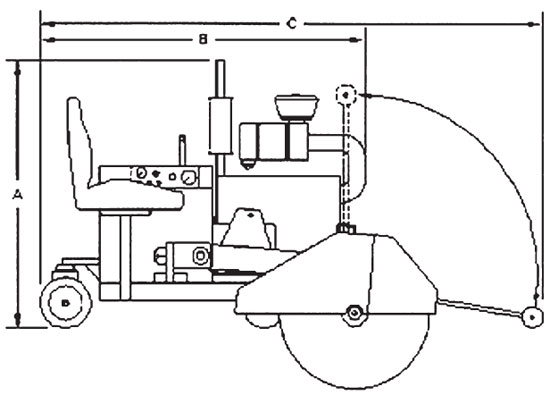

| A |
Saw Height |
67-3/4" |
| B |
Min Length Pointer Up |
82" |
| C |
Max Length Pointer Down |
129-1/4" |
| D |
Frame Width |
45" |
| E |
Frame Length |
58" |
| F |
Saw Width |
64-5/8" |
| G |
Front Axle Center Length |
39-7/8" |
|
Wheel Base Length |
47-1/2" |
|
Blade Shaft Max Height |
31-5/8" |
|
|
