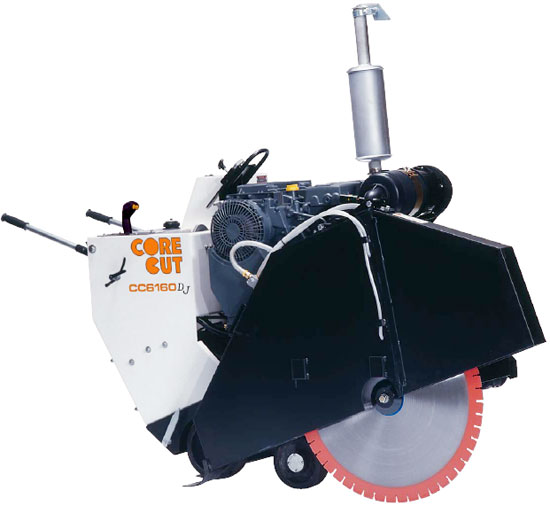

Diamond Products - CC6160 Differential Drive Walk Behind Concrete Saw

CC6160D Concrete Saw
with Differential Drive

Concrete saw with differential drive
and easy access blade drive
allows quick speed adjustments.

The CC6160D has been
DISCONTINUED

Please compare Diamond Products concrete saw models CC6560XLT and CC7074D to your job needs.
  • Model / Part No.
  • Specifications
  • Dimensions

Model No.
Part No.

Engine Type

Blade
Capacity
Cutting Depth

Cessco Price

 Ship
Wt lbs
CC6160D-48
5800930		 61 HP Deutz Turbo Diesel 48"
19-3/4"		 DISCONTINUED 1520
Maximum Depth of Cut:
19-3/4"
Blade Shaft Diameter:
2"
Arbor Diameter:
1" with single drive pin
Blade Shaft Bearings:
Self-aligning double concave roller
Blade Shaft Drive:
10 belt primary, 16 belt secondary
Blade Mounting:
Right or left
Blade Raise and Lower:
Electro-hydraulic pump
Blade Coolant:
Dual multi-spray tubes
Blade Guard Attachment:
Slip-on through 30", Bolt-on 42"
Front Wheel Dimensions:
8" x 3" x 1"
Rear Wheel Dimensions:
10" x 3" x 1-1/4"
Handle Bars:
Tilt
Drive Speed:
0-200 feet per minute
Air Filter:
4 stage
Fuel Capacity:
9 gallons
Electric Start:
Standard
High Temperature Shut-Off:
Gauge and Warning Light
Low Oil Alert:
Warning Light
Hour Meter:
Standard
Amp Meter:
Warning Light
Cutting Depth Indicator:
Standard
Frame Lift:
Standard
Quick Release Rear Wheels:
Standard

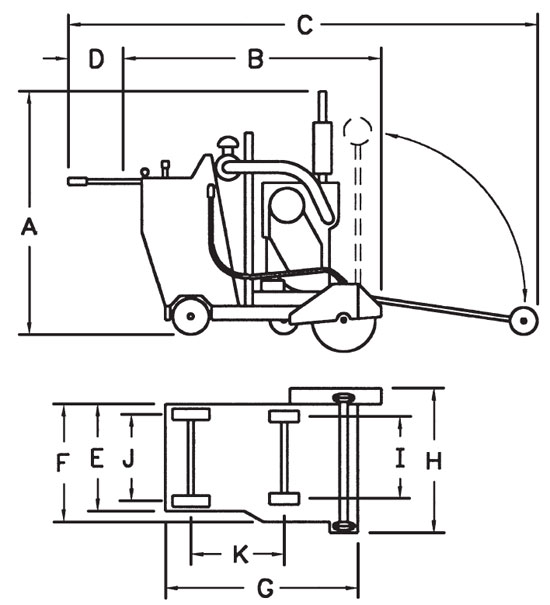

Diamond Products - CC6160D Concrete Walk Behind Saw with Differential Drive
A
Saw Height
63"
B
Min. Length Pointer Up, Handle In
60"
C
Max Length Pointer Down, Handle Out
124"
D
Handle Extension
24"
E
Frame Width (rear)
27-5/8"
F
Frame Width (front)
31-1/4"
G
Frame Length
49-1/2"
H
Saw Width *
37-1/8"
I
Front Axle Center Length
21-3/4"
J
Rear Axle Center Length
24-1/2"
K
Wheel Base Length
23-7/8"
L
Blade Shaft Max Height
19-1/2"
Diamond Products - CC2500 Walk Behind Concrete Saw Dimensions
