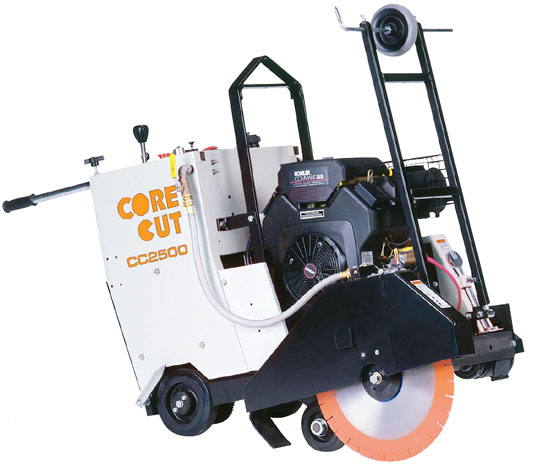

Diamond Products - CC2500 Walk Behind Concrete Saw

CC2500 Concrete Saw

Delivers the power of a large saw with the compactness and economy of a small one.

  • Screw feed raise and lower system or optional power raise and lower system
  • Positive gear drive to rear axle via Eaton hydrostatic transmission
  • 2 position tilt handle bars
  • High strength 3/16” steel box frame with heavy bar reinforcement
  • Maximum cutting depth of 10-3/8” with 26” guard
  • Your choice of gas, electric or hydraulic engines up to 27 horsepower


  • Model/Part No.
  • Specifications
  • Dimensions

Model No.
Part No.

Engine Type

Blade
Capacity
Cutting Depth

Cessco Price

 Ship
Wt lbs
CC2515E-14
5800400A		 15 HP Leeson Electric
230 V		 14"
4-3/8"		 CALL 770
CC2515E-14
5800400B		 15 HP Leeson Electric
460 V		 14"
4-3/8"		 CALL 770
CC2515E-20
5800401A		 15 HP Leeson Electric
230 V		 20"
7-3/8"		 CALL 780
CC2515E-20
5800401B		 15 HP Leeson Electric
460 V		 20"
7-3/8"		 CALL 780
CC2515E-26
5800402A		 15 HP Leeson Electric
230 V		 26"
10-3/8"		 CALL 790
CC2515E-26
5800402B		 15 HP Leeson Electric
460 V		 26"
10-3/8"		 CALL 790
CC2520H-14
5800406		 18 HP Honda GX620 14"
4-3/8"		 CALL 670
CC2520H-20
5800407		 18 HP Honda GX620 20"
7-3/8"		 CALL 680
CC2520H-26
5800408		 18 HP Honda GX620 26"
10-3/8"		 CALL 690
CC2524H-14
5800492		 20.5 HP Honda GX670 14"
4-3/8"		 CALL 660
CC2524H-20
5800493		 20.5 HP Honda GX670 20"
7-3/8"		 CALL 670
CC2524H-26
5800494		 20.5 HP Honda GX670 26"
10-3/8"		 CALL 680
CC2525HY-14
5800489		 25 HP Hydraulic* 14"
4-3/8"		 CALL 680
CC2525HY-20
5800490		 25 HP Hydraulic* 20"
7-3/8"		 CALL 680
CC2525HY-26
5800491		 25 HP Hydraulic* 26"
10-3/8"		 CALL 680
CC2527KC-14
5800497		 27 HP Kohler Command 14"
4-3/8"		 CALL 670
CC2527KC-20
5800498		 27 HP Kohler Command 20"
7-3/8"		 CALL 680
CC2527KC-26
5800499		 27 HP Kohler Command 26"
10-3/8"		 CALL 690
*Hydraulic saws available by request. These saws are dependent upon input flow (GPM).
25 GPM@2500 PSI maximum. Call to determine the right saw for your application.
Call for pricing and availability. These items are usually available in 5-7 days.
Maximum Depth of Cut
10-3/8"
Blade Shaft Diameter:
1-1/2"
Arbor Diameter:
1" with single drive pin
Blade Shaft Bearings
Self-aligning pillow block ball
Blade Shaft Drive:
4 belt through 25 HP, 5 belt for 27 HP
Blade Mounting:
Right or left
Blade Raise and Lower:
Precision ACME screw feed standard, power raise/lower assembly optional
Blade Coolant:
Dual multi-spray tubes
Blade Guard Attachment:
Slip-on
Front Wheel Dimensions:
6" x 2" x 1"
Rear Wheel Dimensions:
8" x 2" x1 "
Handle Bars:
Tilt
Transmission:
Eaton Model 6
Drive Speed:
0-130 feet per minute
Fuel Capacity:
5 gallons
Electric Start:
Standard
Tach/Hour Meter:
Standard
Low Oil Alert:
Standard
Cutting Depth Indicator:
Standard
Quick Disconnect
Blade Flanges:
Standard
Frame Lift:
Standard
Diamond Products - CC2500 Concrete Saw
A
Saw Height
47-1/2"
B
Min length Pointer Up, Handle Down
47-1/2"
C
Max length Pointer Down, Handle Up
107-1/2"
D
Handle Extension
24"
E
Frame Width
20"
F
Frame Length
38"
G
Saw Width
26-1/2"
H
Front Axle Center Length
15-1/2"
I
Rear Axle Center Length
17-3/4"
J
Wheel Base Length
20"

Blade Shaft Max Height
14-1/2"

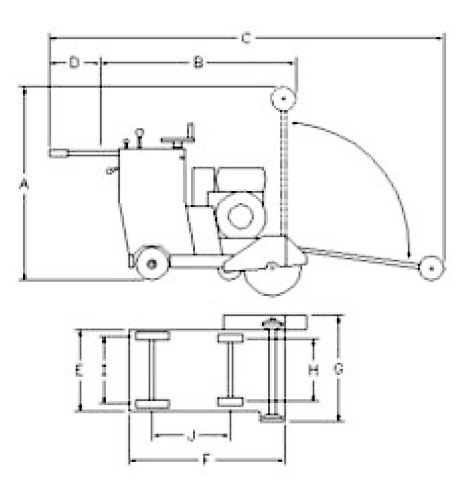

Diamond Products - CC2500 Walk Behind Concrete Saw Dimensions
